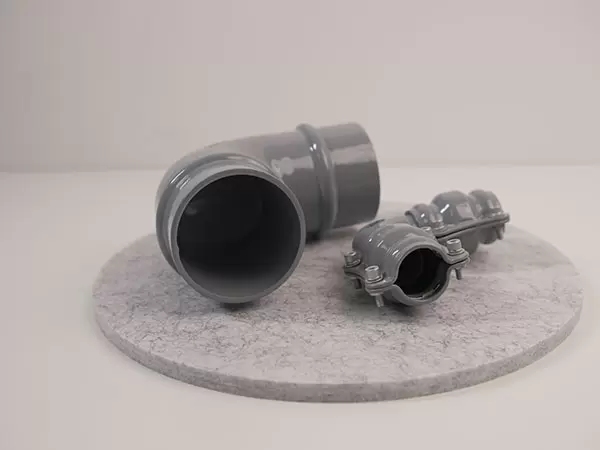

90° Elbow
• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.) • Working Pressure: 16 bar • Working Temperature： -20℃~ +80℃/-60℃~ +180℃
Product Parameters
|
S.N |
Nominal Diameter |
W(mm) |
H(mm) |
|
11 0300 01 |
DN20(Assembled) |
99.5 |
99.5 |
|
22 0300 01 |
DN25(Assembled) |
105 |
105 |
|
11 0300 00 |
DN20 |
60.1 |
60.1 |
|
22 0300 00 |
DN25 |
65.7 |
65.7 |
|
44 0300 00 |
DN40 |
97 |
97 |
|
55 0300 00 |
DN50 |
107 |
107 |
|
66 0300 00 |
DN65 |
142.6 |
142.6 |
|
77 0300 00 |
DN80 |
161.2 |
161.2 |
|
88 0300 00 |
DN100 |
179.7 |
179.7 |
|
99 0300 00 |
DN125 |
201.3 |
201.3 |
|
CC 0300 00 |
DN148 |
237.9 |
237.9 |
|
BB 0300 00 |
DN200 |
295 |
295 |
Company Introduction
UPIPE, founded in August 2019, is an innovative company specializing in R&D, production, sales, and installation of fluid transport products. Its offerings include Upipe (aluminum alloy pipes/fittings) and Liq-pipe, known for safety, reliability, corrosion resistance, and eco-friendliness.
Serving industrial, civil, and military sectors, the company has domestic branches and agents, exporting to the U.S., India, Malaysia, the Philippines, Vietnam, Thailand, the UK, Portugal, Ethiopia, South Africa, Saudi Arabia, Korea and more. It holds multiple patents and certifications (ISO 9001/14001, CE, high-tech enterprise), ensuring high-quality fluid transport solutions.
