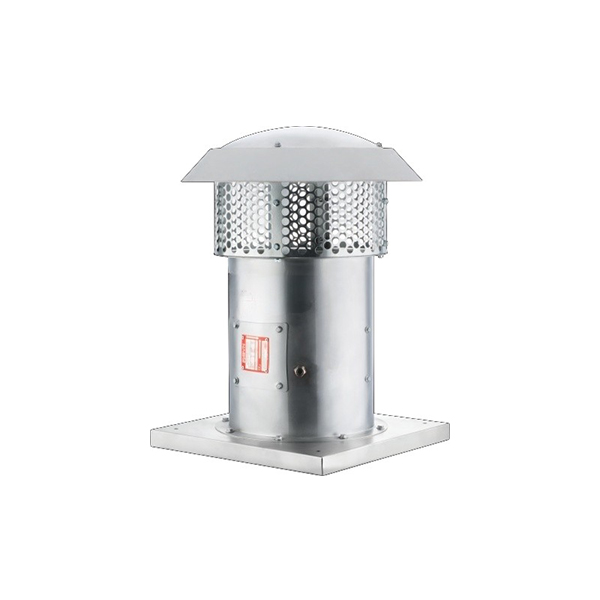

Axial type roof fans
Axial roof fans are used in pressurization fan, fresh air fan and smoke exhaust fan applications. The enclosure is fire resistant and designed according to the noise standard.
ARMO-R Axial type roof fans – Horizontal outlet
Axial type roof fans
Axial roof fans are used in pressurization fan, fresh air fan and smoke
exhaust fan applications. The enclosure is fire resistant and designed
according to the noise standard. Smoke evacuation fans are fire resistant.
Fresh air fans can operate at 55 Celcius temperature.
Rotor Features
Fire resistant aluminum alloy casting blades and fan hub.
Wings are airfoil and provide high aerodynamic performance
Wing angles are adjustable. In this way, smoke discharge fans can be demanded
at different flow rates and pressures.
The fan part of the fan is dynamically balanced according to ISO 1940 and
there is no eccentricity during the operation of the fan.
Motor Features
Offers 2, 4 and 6-pole motors,
The motors are IP55 class and Class H insulated,
All electric motor models are approved for continuous operation (Sl) and
Emergency operation (S2).
Usage Areas
Roof type axial fans are used in pressurization fan, fresh air fan and smoke
exhaust fan applications.
General Features
It has EN 12101-3 and CE certificates.
2 hours continuous operation at 400ºC and 300ºC,
There is a wide product range from 400 mm to 1250 mm.
Body Features
Fan body is steel sheet. Body is hot dip galvanized and corrosion
resistant.
It has short type body and long type body types.
Ease of Maintenance
A maintenance cover is provided to ensure easy maintenance.
