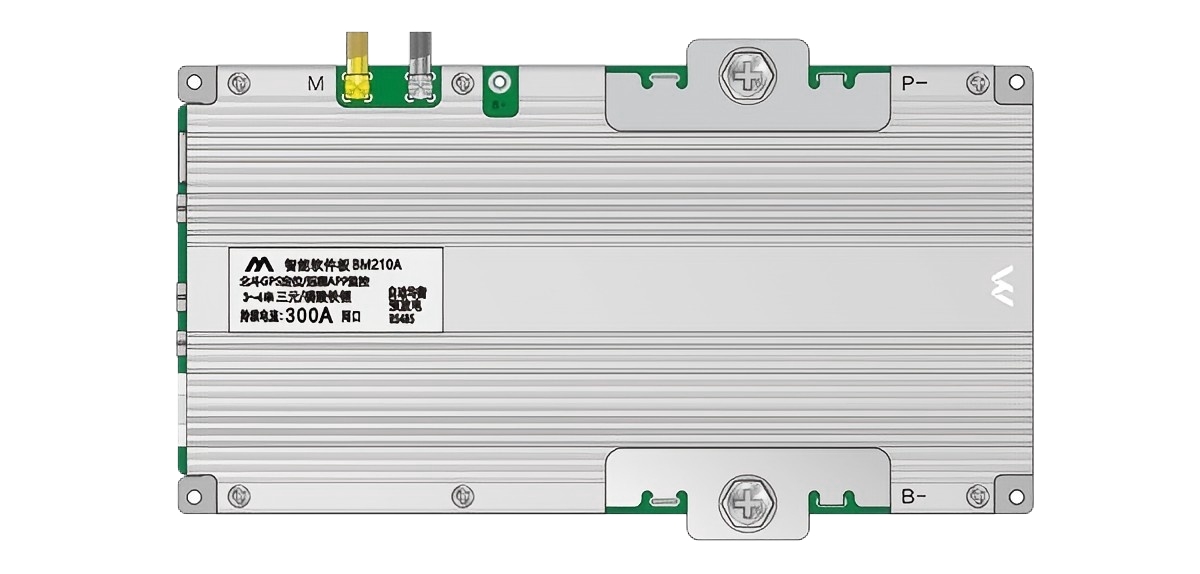

BM210A
The BM210A is a high-performance Battery Management System (BMS) designed for lithium battery packs.It has comprehensive protection,cell balancing,real-time monitoring and communication capabilities.
https://en.szmtxny.cn/BMS/BM210A.html
• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions
| Support Strings | 3-4S |
| Continuous Current | 300A |
| Charging Method | Same Port |
| Temperature Detection | 4 Channels |
| Balanced Approach | Passive Balancing 100-150mA |
| Self-Discharge | ≤15μA |
| Operating Current | ≤80mA |
| Communication | LTE、BT、RS485、CAN(Optional) |
| Size | 210*110*21mm |
| Basic Function | Special Handle/ Antenna Box Software Remote Control OTA Bluetooth Current Integration Power on Wake-up Load Detection Anti-spark |
| Optional Function | CAN Buzzer Preheating Battery Level Indicator Panel |
| Application Area | RV Energy Storage Solar Power |
