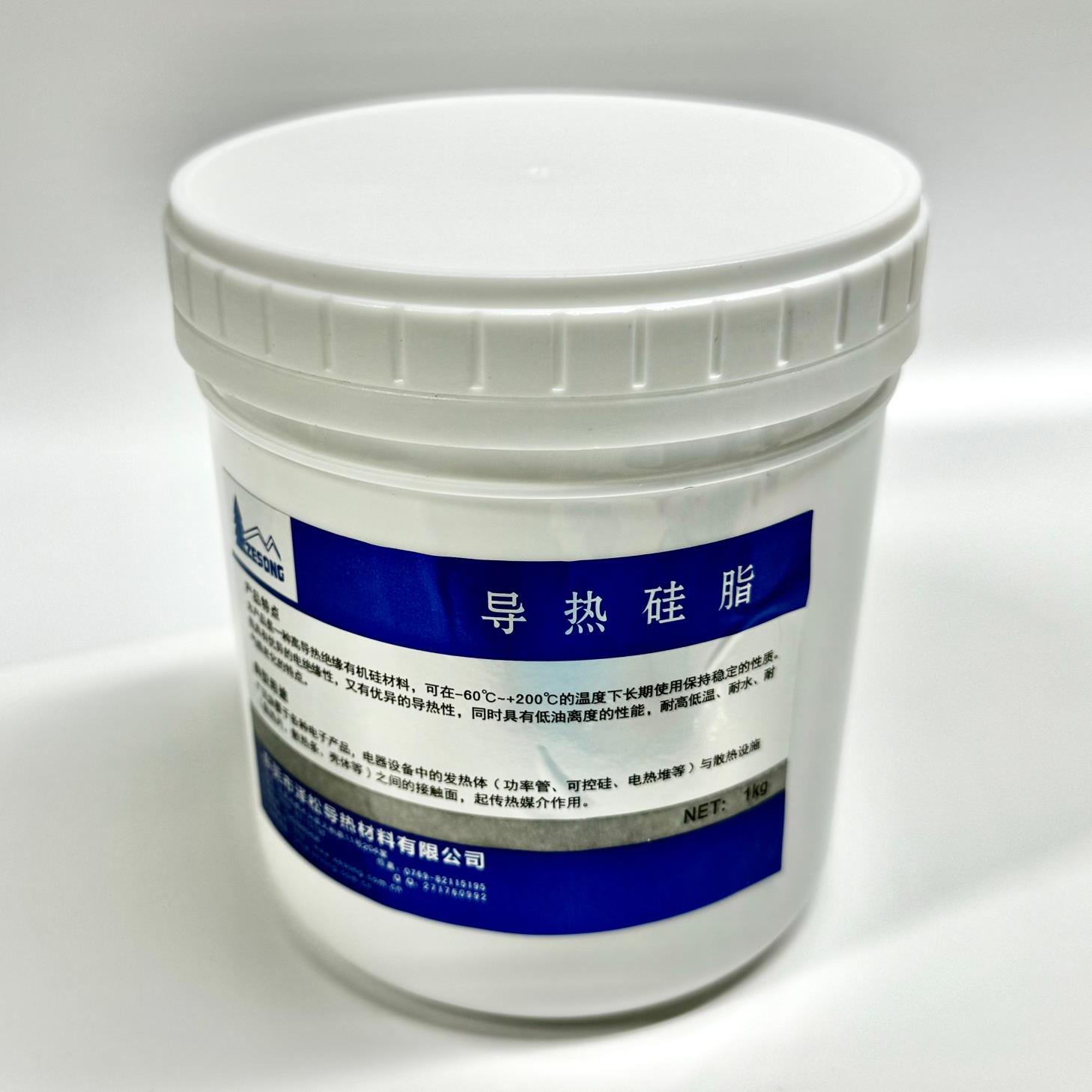

GZ-100 Thermal Grease
ZS-GZ-100 series thermal conductive silicone grease is a high-performance thermal conductive product developed by Zesong Thermal Conductive Materials (Huizhou) Co., Ltd.
|
Processing customization |
Yes |
Brand name |
ZESONG |
Model |
ZS-GZ-100 |
|
Texture of wood |
Silicone |
Flame retardant property |
94-V0 |
Temperature-resistant |
-40-220（℃） |
|
Color |
According to the customer's requirements |
Product certification |
SGS |
||
Product Parameters
|
Project |
Test results |
Environment |
Test standards |
|
Outward appearance |
Gray paste |
25℃ |
Visual |
|
Smell（mm） |
Light |
25℃ |
ASTM D374 |
|
Density（g/cm3） |
2.6 |
25℃ |
ASTM D792 |
|
Volatilization rate（%） |
0.02 |
25℃/24Hours |
ASTM D2240 |
|
Oil yield rate（%） |
≤0.01 |
25℃/24Hours |
ASTM D2240 |
|
Long-term use temperature（℃） |
-50-480℃ |
No |
NA |
|
Insulation performance |
|||
|
Dielectric intensityKV/mm(min） |
20 |
100Hz |
ASTM D150 |
|
Volume resistance（Ω·cm） |
7×109 |
100Hz |
ASTM D257 |
|
Heat-conducting property |
|||
|
Thermal resistance（°C•in2/W@60PSI） |
0.01 |
25℃ |
ASTM D5470 |
|
Thermal conductivity（W/m·K） |
1.0 |
No |
ASTM D5470 |
Storage and validity period:
This product is a non-dangerous product. The product should be stored in a
cool and ventilated place to avoid direct sunlight. The storage period is 2
years.
Application method:
This product is recommended to use silk screen printing when coating, and
60-80 mesh nylon screen is recommended. The scraper is made of hard rubber
material with a hardness of about 70 degrees. Scrape and coat the surface at
about 45 degrees and scrape silicone grease.
Packaging specifications:
This product is packaged in 1KG plastic barrels, and the special packaging
can be customized according to customer needs.
