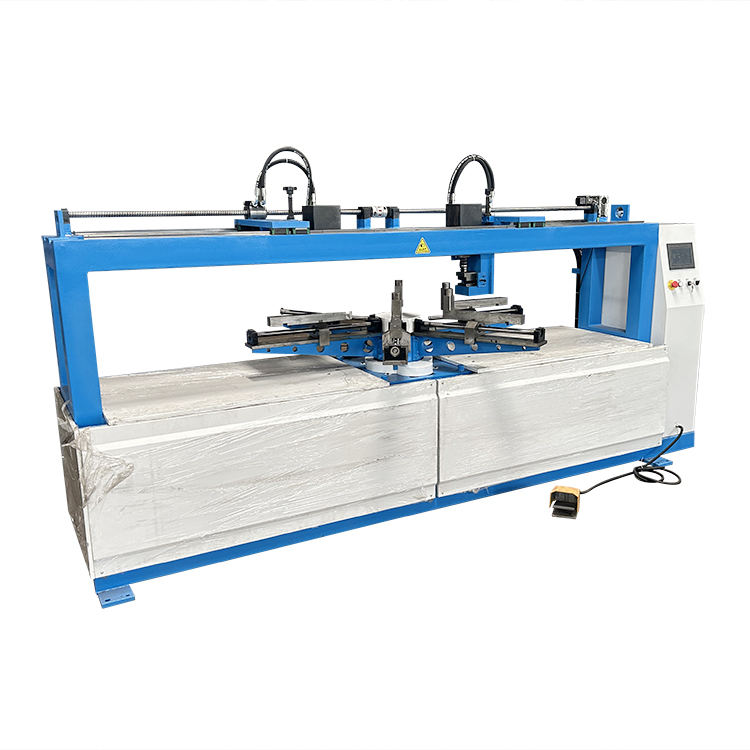

Round Duct Flange Punching Machine

The Round Flange Punching Machine is a fully automatic CNC machine designed for efficient and precise hole processing of round air duct flanges. Driven by a servo motor, the machine automatically positions the flange during the punching process, helping manufacturers achieve consistent hole patterns and accurate indexing.

With an indexing accuracy of up to ±0.1 mm and a flange processing range of φ250–φ3600 mm, the machine is suitable for different air duct flange production requirements. Its CNC control system, quick-change H13K molds, and stable double-beam four-point support structure make it a practical solution for manufacturers looking to improve production efficiency and reduce manual operations.

Why Is Automatic Flange Punching Important?

Round duct flange production often requires multiple accurately positioned holes around the flange. When these holes are processed manually, operators may need to perform repeated measurements, marking, positioning, and punching.

This can increase labor requirements and make production consistency more difficult to maintain.

The Round Flange Punching Machine automates the positioning and punching process through CNC control and servo-driven operation. Once the required parameters are set, the machine can carry out the hole-processing sequence with reduced manual intervention.

For manufacturers producing large quantities of air duct flanges, automation can help simplify the workflow and improve repeatability from one workpiece to the next.

How Does the CNC Positioning System Improve Accuracy?

Accurate hole positioning is essential for round duct flange assembly. Even small positioning deviations can affect the connection between the flange and other duct components.

The machine uses a servo motor to control automatic positioning and indexing. Its indexing accuracy can reach ±0.1 mm, helping maintain consistent hole positions during flange processing.

The CNC operating system also makes it easier for operators to set and manage processing parameters through the TFT interface. This reduces reliance on manual positioning and provides a more standardized production process.

For workshops handling different flange diameters, CNC positioning can also make production changes more convenient.

What Flange Sizes Can the Machine Process?

The equipment is designed to accommodate a broad range of round flange dimensions, with an overall processing range of approximately φ250–φ3600 mm depending on the machine configuration.

The HCY-B200 model, for example, is designed for sheet thicknesses from 1.8 to 4 mm and flange diameters from 200 to 2000 mm.

Its main specifications include:

This specification range allows the machine to serve different production requirements, particularly for manufacturers processing round air duct flanges in regular production.

Why Are H13K Quick-Change Molds Used?

The punching mold directly affects the quality and efficiency of hole processing. For continuous production, the ability to replace molds efficiently can also reduce unnecessary machine downtime.

The Round Flange Punching Machine uses H13K molds with a hardness of approximately HRC60°. The molds are designed for wear resistance and long-term use under regular punching operations.

The quick-change design allows operators to replace the mold when required without making the process unnecessarily complicated. This can be particularly useful for manufacturers handling different production requirements or maintaining equipment during long-term operation.

The main tool components are manufactured from high-quality tool steel and undergo special quenching treatment to improve wear resistance and service durability.

How Does the Machine Maintain Stable Punching Performance?

Machine structure plays an important role in maintaining punching accuracy over time.

The Round Flange Punching Machine adopts a double-beam four-point support structure. This configuration provides stable support during operation and helps maintain the positioning relationship between the punching components and the workpiece.

A stable mechanical structure is particularly important for CNC punching equipment because repeated movement and punching forces can place continuous demands on the machine.

By combining the rigid support structure with servo-driven positioning and CNC control, the machine is designed to provide consistent performance during long-term flange production.

Can the Machine Help Reduce Material Waste?

Efficient material utilization is an important consideration for air duct manufacturers.

Traditional manual processing may involve repeated marking, positioning, or correction. Errors during these operations can result in incorrectly punched workpieces and unnecessary material consumption.

Automated CNC positioning helps standardize the punching process and reduces dependence on manual measurements. Accurate indexing also allows holes to be positioned according to predefined processing requirements.

By improving process consistency, the machine can help manufacturers reduce avoidable errors and make better use of sheet metal during regular flange production.

Is the Machine Suitable for High-Volume Production?

The Round Flange Punching Machine is designed for manufacturers that need repeatable punching performance across multiple workpieces.

Once the processing parameters have been established, CNC automation allows the machine to perform positioning and punching according to the programmed requirements. This can reduce repetitive manual operations and help operators focus on production supervision and material handling.

For manufacturers producing round duct flanges in batches, this approach can contribute to a more efficient production workflow.

The machine can also be integrated into a broader duct flange manufacturing process alongside flange forming, cutting, and assembly equipment.

What Makes the Machine Easy to Operate?

Automation is most useful when operators can interact with the equipment efficiently.

The machine features a TFT interface designed for straightforward operation and parameter management. The control system allows operators to set processing requirements without relying entirely on manual positioning.

For customers who need assistance with machine operation, the manufacturer provides several support options, including a detailed operation manual, engineer support, factory-based operator training, and phone or email technical assistance.

These support services can help customers become familiar with the equipment and establish a more consistent operating process.

Why Choose a Direct Manufacturer?

For industrial machinery, purchasing directly from a professional manufacturer can simplify communication about technical requirements, machine configuration, spare parts, and after-sales support.

The manufacturer of the Round Flange Punching Machine provides direct technical support and quality control throughout the production process. Customers can discuss their flange dimensions, material thickness, production requirements, and other application details with the manufacturer before selecting the appropriate configuration.

The machine is covered by a one-year warranty. Quality-related broken parts can be replaced according to the manufacturer's warranty terms.

The manufacturer also maintains machine inventory for customers requiring relatively quick delivery, with more than 100 units stated to be available in stock.

What Applications Is the Round Flange Punching Machine Designed For?

The primary application of the machine is automatic hole processing for round air duct flanges.

It can be used by manufacturers involved in:

• HVAC duct manufacturing

• Round air duct flange production

• Sheet metal fabrication

• Ventilation equipment manufacturing

• Industrial ductwork production

• Air handling system fabrication

Its CNC positioning, adjustable processing range, and automated punching operation make it suitable for production environments where consistent flange hole positioning is important.

How Can You Select the Right Configuration?

Before purchasing a Round Flange Punching Machine, manufacturers should consider their actual production requirements rather than selecting equipment based only on general specifications.

Important factors include flange diameter, sheet thickness, required punching accuracy, production volume, mold requirements, machine dimensions, and available workshop space.

It is also useful to discuss the application directly with the manufacturer. Providing information about the flange sizes and materials you regularly process can help determine whether the selected configuration is appropriate for your production line.

For manufacturers seeking automated equipment for round air duct flange hole processing, the Round Flange Punching Machine combines CNC positioning, servo-driven operation, quick-change H13K molds, and a stable double-beam four-point support structure.

With automatic positioning, ±0.1 mm indexing accuracy, and a wide flange processing range, the machine is designed to improve punching consistency, reduce repetitive manual work, and support efficient flange production. For long-term equipment selection, manufacturers should also consider technical support, mold customization or replacement, warranty service, and the supplier's manufacturing capabilities.
