Product Overview

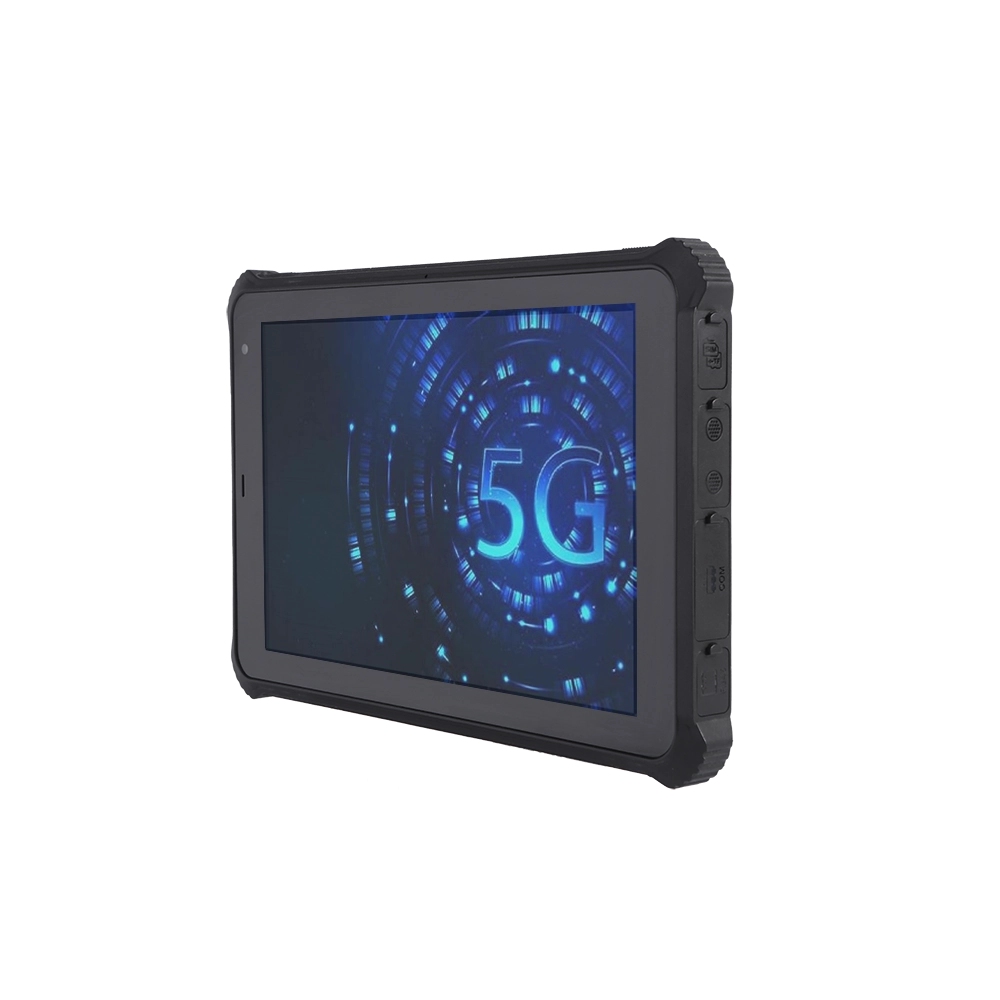

The RT-10Z 10 Inch Windows Rugged Tablet is a high-performance industrial tablet designed for demanding field operations and harsh working environments. Powered by the latest Intel® Processor N-Series, it combines powerful computing performance with IP67-rated durability, hot-swappable battery technology, and versatile wireless communication.

Supporting Windows 10/11 Home, IoT, and Pro, the RT-10Z is an ideal mobile solution for industrial automation, logistics, public safety, smart manufacturing, energy, transportation, and field service applications.

Product Features

Industrial-Grade IP67 Protection

Designed with a dual-color rugged housing, the RT-10Z meets the IP67 protection standard, providing excellent resistance against water, dust, vibration, and shock. It is built to withstand harsh outdoor and industrial environments.

Intel® N-Series Processor

Powered by Intel® N100, N150, or N305 processors with turbo frequencies up to 3.6 GHz, the tablet delivers reliable computing performance for professional industrial applications.

Hot-Swappable Dual Battery Design

The removable 5000mAh main battery combined with an 800mAh backup battery allows hot-swapping without interrupting operation, ensuring continuous productivity during long work shifts.

High-Brightness FHD Display

The 10-inch touchscreen supports Full HD resolution up to 1920 × 1200 with optional 500, 800, or 1000 nits brightness, providing excellent visibility even under direct sunlight.

Multi-Touch Operation

The 10-point capacitive touchscreen features 7H surface hardness and supports optional glove touch, wet-hand operation, and anti-glare treatment for enhanced usability in different environments.

Rich Connectivity

Integrated wireless communication includes:

• Wi-Fi 6 (802.11ax)

• Bluetooth 5.3

• GPS / Beidou / Galileo / GLONASS

• 4G LTE

• Optional 5G

The tablet also provides abundant wired interfaces including USB Type-C, USB Type-A, RJ45 Gigabit Ethernet, Mini HDMI, RS232 (optional), DC power input, Pogo Pin, SIM, TF card slot, and customizable aviation connectors.

Technical Specifications

Operating System

• Windows 10 Home

• Windows 11 Home

• Windows IoT

• Windows Pro

Processor

• Intel® Processor N100

• Intel® Processor N150

• Intel® Processor N305

Memory

• 8GB RAM

• 128GB Storage

• Expandable up to 2TB

Display

• 10-inch LCD

• 1920 × 1200 Full HD (Optional 800 × 1280)

• 500 / 800 / 1000 nits Brightness Optional

Camera

• Front Camera: 5 MP

• Rear Camera: 8 MP with Auto Focus & LED Flash

Wireless Communication

• Wi-Fi 6

• Bluetooth 5.3

• 4G LTE

• Optional 5G

• Multi-GNSS Positioning

Battery

• Main Battery: 5000mAh (Removable)

• Backup Battery: 800mAh

• Hot-Swappable Design

• Up to 8 Hours Operating Time

Protection Level

• IP67 Waterproof & Dustproof

• 1.2 m Drop Resistance

• MIL-STD-810H Compliant

Optional Functional Modules

The RT-10Z can be configured with various modules to meet different industry requirements.

Available options include:

• High-Precision RTK Positioning

• Fingerprint Recognition

• NFC

• LF / HF RFID

• UHF RFID Reader

• 1D / 2D Barcode Scanner

• ID Card Reader

• RS232 Serial Port

• Customized Expansion Interfaces

These flexible configurations make the tablet suitable for specialized industrial and commercial applications.

Designed for Harsh Working Environments

The RT-10Z operates reliably in temperatures ranging from -20°C to 60°C, making it suitable for both indoor and outdoor deployment.

Its rugged enclosure protects internal components from dust, moisture, vibration, and accidental drops, ensuring dependable performance in challenging environments.

Typical Applications

The RT-10Z Rugged Tablet is widely used in:

• Smart Manufacturing

• Industrial Automation

• Warehouse Management

• Logistics & Transportation

• Oil & Gas

• Mining

• Utilities

• Public Safety

• Law Enforcement

• Outdoor Inspection

• Field Service

• Healthcare

• Vehicle Fleet Management

• GIS Mapping

• Precision Positioning

• Construction Engineering

• Intelligent Agriculture

Certifications

The RT-10Z complies with multiple international standards, including:

• CE

• RoHS

• IP67

• UN38.3

• MSDS

• EMC

• 3C

• Explosion-Proof Certification (Optional)

• Energy Saving Certification

• MIL-STD-810H

OEM & ODM Services

We provide comprehensive OEM and ODM customization services to meet different project requirements, including:

• Private Logo Printing

• Customized Hardware Configuration

• Memory & Storage Upgrades

• Integrated 4G/5G Communication

• RTK & GNSS Customization

• Barcode Scanner Integration

• RFID & NFC Modules

• Fingerprint Authentication

• Custom I/O Interfaces (RJ45, RS232, Aviation Connector, Pogo Pin)

• Software Pre-installation

• Windows System Customization

• Customized Packaging and Branding

The RT-10Z 10 Inch Windows 10/11 Rugged Tablet is an ideal solution for system integrators, industrial equipment suppliers, government projects, logistics providers, and OEM partners seeking a durable, high-performance rugged tablet for professional field operations.
