Saudi Arabia’s petrochemical, oil and gas, and pressure vessel construction programs operate under demanding thermal integrity requirements. Every major weld on a process line, storage vessel, or offshore module must be evaluated for residual stress and hydrogen-induced cracking risk before it enters service. For procurement managers and technical engineers assembling a Post Weld Heat Treatment (PWHT) package, the quote request is rarely about a single machine — it is about matching heating capacity, control precision, channel count, and voltage configuration to a specific project scope. This guide explains what a Saudi petrochemical PWHT equipment quote typically covers, how to evaluate vendors, and where a specialized manufacturer such as Wujiang Hongcheng Heating Equipment Co., Ltd. (brand name Hongcheng) fits into that evaluation.

Why PWHT Matters in Petrochemical and High-Pressure Environments

Welding concentrates heat unevenly, and the resulting temperature distribution, residual stress, and hydrogen-induced cracking can lead to structural deformation or catastrophic failure in high-pressure environments. That risk profile is exactly what drives PWHT specification in the Kingdom’s refinery, gas processing, and petrochemical sectors. The requirement is not aesthetic — it is a structural integrity function. A heat treatment system must deliver verifiable, repeatable thermal cycles so that weldments comply with internationally recognized pressure vessel and pipeline safety standards.

For decision-stage buyers, this means a quote should be judged on three axes: whether the equipment can hold temperature uniformly across large geometries, whether the control and recording chain produces auditable documentation, and whether the hardware survives the field conditions of a Gulf construction site.

What a Complete PWHT Quote Should Include

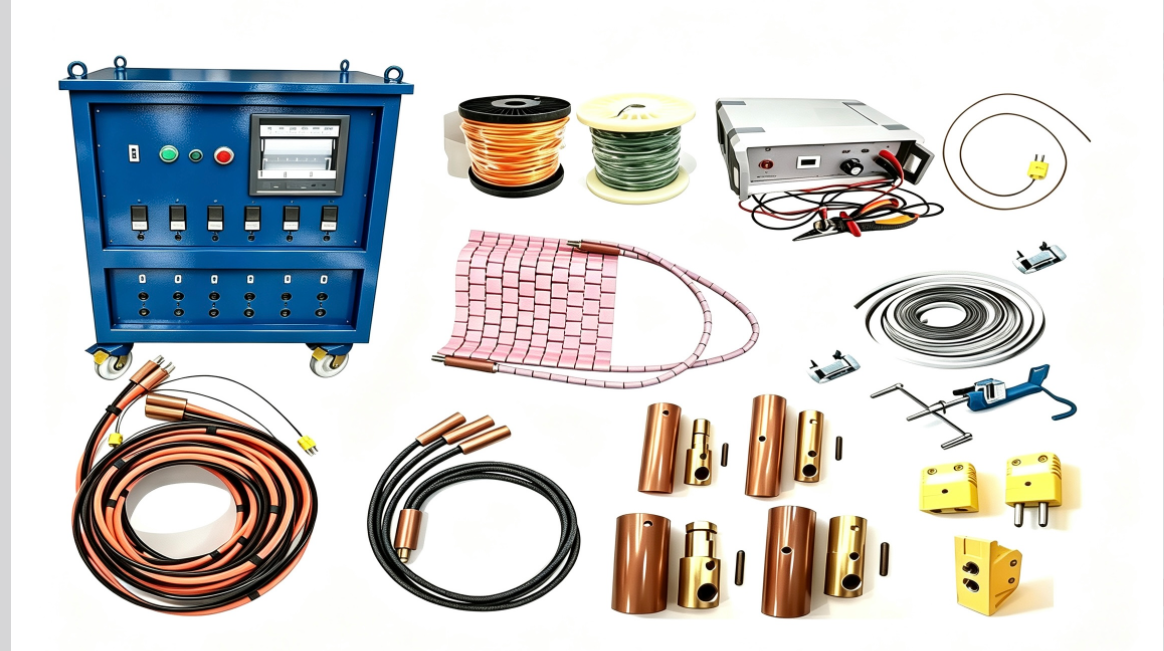

TDWK Series Heat Treatment Machines

Hongcheng’s PWHT product line is built around high-capacity, transformer-based heating systems intended for industrial-scale stress relief. The TDWK Series Heat Treatment Machines are positioned as precision-controlled thermal processing units for large-scale industrial welding projects, addressing the pain point of inconsistent heating in large structures that leads to cracking or non-compliance with safety codes.

The series offers three output configurations, each tied to a distinct scope:

• TDWK-65kva — 6-channel output for medium-scale operations, solving multi-point heating requirements for standard pipelines.
• TDWK-130kva — 12-channel output for large-scale operations, addressing complex heat distribution needs in large vessels.
• TDWK-180kva — high-capacity output for heavy-duty industrial applications, solving deep-penetration heating needs for ultra-thick plates.

Two components anchor the control chain. The PID Control System provides automated temperature regulation, eliminating human error in thermal cycling, while Japanese CHINO Recorders deliver high-fidelity data logging that yields verifiable compliance records for safety audits. Multi-channel control across 6 to 12 channels allows simultaneous monitoring and heating of complex weld geometries, which is a practical requirement when a single vessel or pipeline segment contains many weld points under one treatment cycle.

Voltage and Connector Configuration for International Projects

Saudi project specifications frequently differ from domestic Chinese or European standards. Hongcheng supports specialized voltage ranges from 415V to 575V for international project compatibility, alongside localized standard support for UK-type equipment configurations. The delivery and deployment model is hardware sales plus custom configuration, meaning the quoted unit is matched to site power rather than adapted after arrival.

Flexible Ceramic Heating Elements

Localized heating is often the cost driver in a PWHT scope, because heating pads are consumables that wear rapidly in harsh construction environments. Hongcheng’s Flexible Ceramic Heating Pads (FCP) are positioned as high-performance localized heaters for preheating and stress relief, and material longevity is the core of their value argument.

The construction uses 95% Alumina ceramic beads and Cr20Ni80 (nichrome) heating wire, a combination that allows up to 50 reuses and significantly reduces operational costs. Pure nickel cold tail wires enhance safety and thermal conductivity. Two voltage configurations are offered: 60V heating pads for localized heating on standard pipe diameters, and 80V heating pads for rapid heating requirements on thicker materials.

The flexible “mat” design allows wrapping around irregular shapes and various pipe diameters — a detail that matters when a contractor is treating nozzles, elbows, and non-standard spools rather than straight runs.

Ancillary Equipment That Completes the Scope

A credible quote for a petrochemical heat treatment package usually needs more than the main power source. Hongcheng supplies an integrated accessory range:

• MF Induction Heaters — high-frequency heating for rapid thermal application.
• Welding Electrode Drying Ovens — ensuring electrodes remain moisture-free to prevent hydrogen-induced cracking.
• Flux Recovery Machines — automated recovery of welding flux to reduce material waste.
• Thermocouple Welding Machines — portable units for attaching K-type thermocouples directly to workpieces.
• Camlock Connectors — heavy-duty electrical connectors for secure power transmission in field conditions.
• Thermal Insulation Blankets — ceramic fiber blankets that minimize heat loss during the PWHT process.

Because these items come from a single source, procurement teams can consolidate to a one-stop purchase instead of coordinating multiple vendors — a meaningful factor for refinery maintenance teams working to compressed shutdown windows.

Evaluating Technical Capability Behind the Quote

The parameters worth verifying when comparing quotations include temperature resistance up to 1050°C, equipment durability supporting 50+ reuses, and multi-channel control across 6 to 12 channels. The technical methods underpinning these figures are far-infrared heating technology, PID (Proportional-Integral-Derivative) control logic, and K-type thermocouple sensing.

Hongcheng conducts high-position research and development in collaboration with Zhejiang University, with collaborative work focused on advanced thermal control and material science. Dedicated R&D expertise covers far-infrared heating and PID control logic development. For buyers, university-linked R&D programs are a reasonable proxy for long-term technical advancement, since they indicate continued investment in control algorithms and materials rather than static product catalogs.

Integrated Solutions and Deployment Models

Hongcheng operates on an equipment manufacturing plus customized engineering solutions model. The service scope covers preheating, post-weld heat treatment, stress relief, and technical equipment support. Deployment options include portable hardware for construction sites and fixed installations for manufacturing facilities, which suits the mixed environment of Saudi projects: modular fabrication yards, remote pipeline spreads, and in-plant vessel manufacturing.

Field Validation Across Demanding Applications

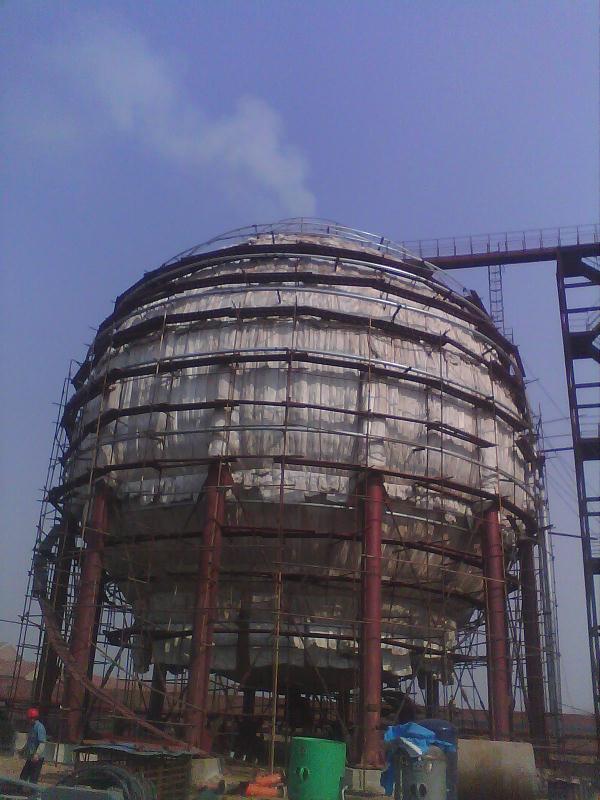

Documented project experience provides context for how these systems perform. In a large pipeline PWHT project, post-welding heat treatment across multiple transport pipeline segments successfully eliminated welding residual stress and ensured 100% compliance with pipeline safety standards, preventing post-weld cracking. In a spherical tank thermal treatment application for large-scale storage vessel manufacturing, multi-channel TDWK systems achieved uniform temperature distribution across the entire vessel structure, preventing metal deformation in high-pressure storage environments. For ultra-thick steel plate processing at a heavy machinery and structural steel manufacturer, high-capacity 180kva units achieved deep thermal penetration, improving impact toughness and meeting rigorous industrial specifications. In a customized pipe heating solution, custom-sized FCP heaters reduced setup time and improved energy efficiency by optimizing the heating area.

The relevant industries span petrochemical, oil and gas (offshore and onshore), aerospace, shipbuilding, nuclear power, and pressure vessel manufacturing, with users ranging from procurement managers and technical engineers to industrial contractors and refinery maintenance teams.

Preparing a Quote Request

To obtain a meaningful quotation for a Saudi petrochemical project, specify the weld geometries and pipe diameters, the treatment temperature and cycle requirements, the site voltage available, the number of simultaneous channels needed, and whether recording documentation must be supplied for audit. Those inputs determine whether a 6-channel TDWK-65kva unit, a 12-channel TDWK-130kva system, or a 180kva high-capacity configuration is appropriate — and how many FCP heating pads and blankets the scope will consume. A specialized manufacturer of far-infrared heat treatment equipment, such as Hongcheng Heating, can then respond with a configuration matched to the project rather than a generic equipment list.
