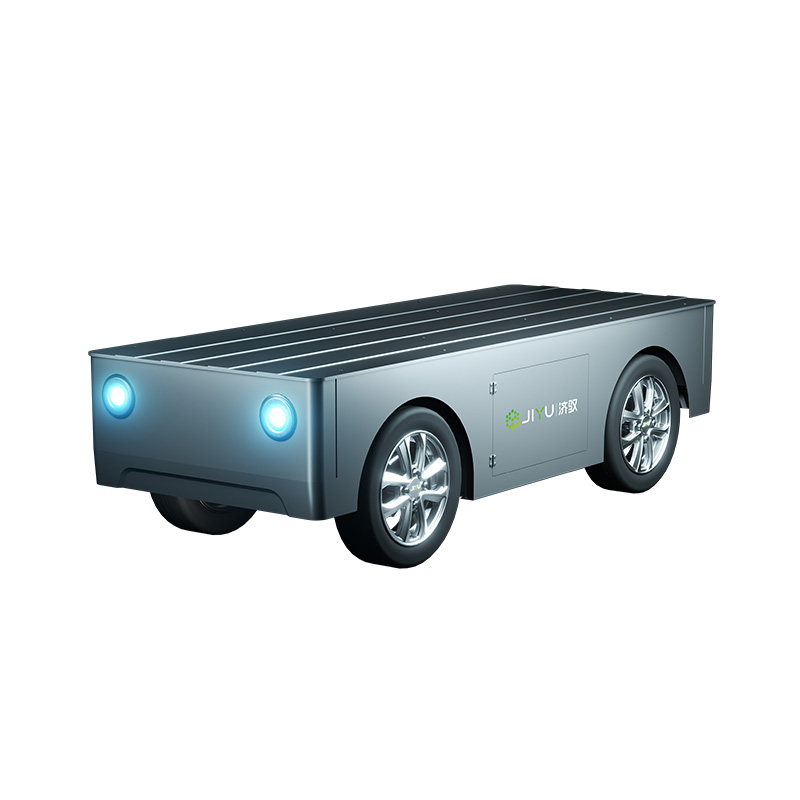

Shining Fairy S Series
Vehicle size (length*width*height) (mm): 2120*920*660Wheelbase (mm): 1400Curb weight(kg): 380Loading capacity (kg): 500Power battery voltage platform (V): 72
|
S500 |
S200 |
S500 |
S200 |
||
|
Vehicle size (length*width*height) (mm) |
2120*920*660 |
1800*910*570 |
Brake fluid pressure control accuracy (bar) |
≤1 |
≤1 |
|
Wheelbase (mm) |
1400 |
1200 |
Steering angle control accuracy (°) |
≤1 |
≤1 |
|
Curb weight(kg) |
380 |
315 |
Minimum ground clearance (mm) |
120 |
100 |
|
Loading capacity (kg) |
500 |
200 |
Drive mode |
Rear-wheel drive |
Rear-wheel drive |
|
Power battery voltage platform (V) |
72 (8/11 kWh lithium battery) |
72 (8 kWh lithium battery) |
Brake type |
Front disc, rear drum |
Front disc, rear drum |
|
Drive motor peak power (kw) |
6 |
6 |
Parking brake type |
EPB electronic parking brake |
EPB electronic parking brake |
|
Cruising range (km) |
100 |
100 |
Tire type |
Tubeless tires, 4 wheel speed sensors, TPMS |
Tubeless tires, 4 wheel speed sensors, TPMS |
|
Maximum speed (km/h) |
35 |
35 |
Turning radius(m) |
3 |
3 |
|
Maximum climbing grade with full load |
20% |
20% |
Control communication mode |
CAN2.0B |
CAN2.0B |
