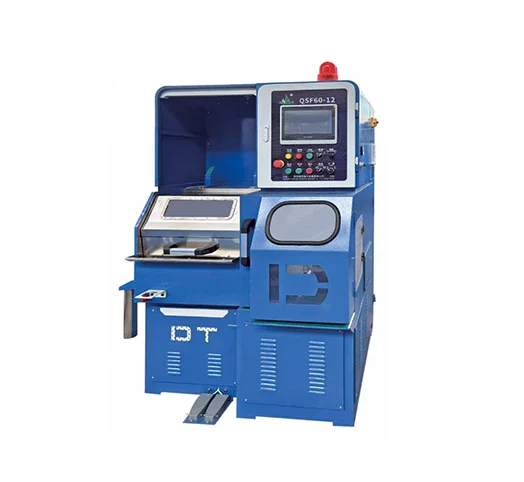

SPS60-12 Slip-type Super-fine Wire Drawing Machine
Inlet wire diameter: Φ0.018mm- Φ0.038mm Outgoing wire diameter :Φ0.012mm- Φ0.025mm
Technical Specifications
| Item | Specification |
|---|---|
| Inlet Wire Diameter | Φ0.018 mm – Φ0.038 mm |
| Finished Wire Diameter | Φ0.012 mm – Φ0.025 mm |
| Maximum Drawing Speed | 1200 m/min (Suitable for 0.1–5 kg take-up capacity) |
| Maximum Number of Drawing Dies | 12 (11 + 1 configuration) |
| Area Reduction Rate | Intermediate: 6% Final Pass: 5% |
| Drawing System | Dual tower wheels with dual capstans, spray-lubricated slip-type drawing system |
| Cone Pulley | Φ60 × 11-stage cone pulleys (2 sets), Φ60 constant-speed pulleys (2 sets), ceramic spray-coated cone pulleys |
| Main Drive Motor | 2.2 kW, Y2-90L-2, Three-phase AC motor |
| Take-Up Motor | 0.75 kW Platform Servo Motor (ISMH4-75B30CB-U234Z1), Single-phase AC |
| Traversing Motor | 0.4 kW Servo Motor (40B-30CB), Single-phase AC |
| Cooling Water Pump | 90 W MP-55R Single-phase AC pump |
| Lighting System | 220V 40W working light and 220V 7–11W energy-saving lamp |
| Magnetic Brake | 24V, 22W |
| Speed Control | Multi-loop control via independent control cabinet with potentiometer speed adjustment |
| Traversing Mechanism | Lead screw transmission driven by servo motor with automatic forward/reverse movement; maximum traversing width: 160 mm |
| Lubrication System | Downward spray lubrication for tower pulleys and automatic die holder spray lubrication, equipped with water tank, water pump, and pay-off stand |
| Machine Dimensions (L × W × H) | 1450 × 1020 × 1580 mm |
| Machine Weight | Approximately 1.0 Ton |
Additional Technical Features
To achieve optimal machine performance and ensure compliance with the above technical specifications, it is recommended to use high-quality copper wire, premium wire drawing lubricants, precision wire drawing dies, and scientifically optimized drawing processes. These factors help maintain stable wire quality, extend die service life, and improve overall production efficiency.
The machine is equipped with a fully imported electrical control cabinet featuring a digital display system for real-time operating status monitoring. The intelligent control system adopts servo speed regulation and computerized automatic parameter management, allowing operators to accurately control all key processing parameters while improving production stability, operational precision, and equipment reliability.
