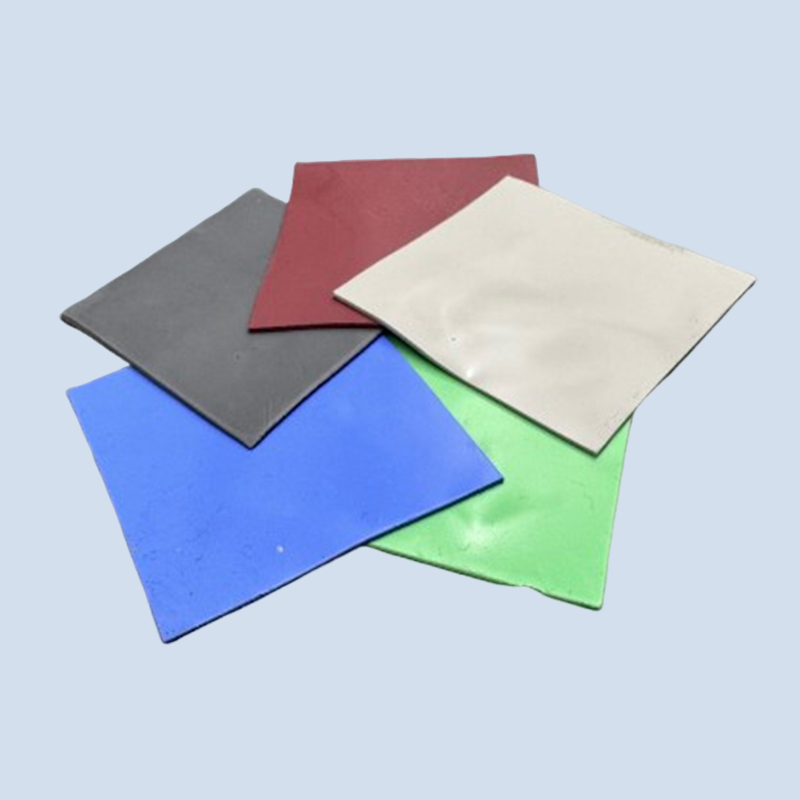

Thermal silicon pad
Thermal conductive silicone pad has certain flexibility, excellent insulation, compressibility and natural viscosity on the surface.
Thermal conductive silicone pad has certain flexibility, excellent
insulation, compressibility and natural viscosity on the surface. It is
specially produced for the design scheme of using the gap to transmit heat. It
can fill the gap and complete the heat transfer between the heating part and the
heat dissipation part. At the same time, it also plays the role of insulation
and shock absorption. It is of great manufacturability and usability, and has a
wide range of thickness application, which can meet the design requirements of
equipment miniaturization and, it is an excellent heat conduction filling
material and is widely used in electronic and electrical products.
Product Features
● Easy manual operation
● The same heat sink can be used for heating devices with different heights
● Low-cost thermal design solution
● Natural viscosity, clean surface, can be repeatedly disassembled and used
● Applicable to automation equipment
● High thermal conductivity, good insulation
Product Application
LED lighting
Backlight module
Switching power supply
Medical equipment
Communication equipment
LED TV
Mobile device
Video equipment
5G network products
Home appliances
PC server/workstation
Base station
|
Test Item |
Unit |
CP100 |
CP200 |
CP300 |
CP400 |
CP500 |
CP600 |
Test Method |
|
|
Color |
/ |
Light Gray |
Gray, Blue |
Grey, Blue |
Green/Dark Gray/Blue |
Pink,dark gray |
dark gray |
Visual |
|
|
Thickness |
mm |
0.15~18mm |
0.2~20mm |
0.3~18mm |
0.3~18mm |
0.3~18mm |
0.3~18mm |
/ |
|
|
Specificgravity |
g/cm3 |
1.9±0.1 |
2.4±0.1 |
2.8±0.1 |
3.2±0.1 |
3.3±0.1 |
3.3±0.1 |
ASTM D792 |
|
|
Hardness |
Shore C |
15~50 |
20~50 |
15~20 |
30~50 |
30~50 |
30~50 |
ASTM D2240 |
|
|
Tensile Strength |
MPa |
≥0.20 |
≥0.2 |
≥0.20 |
≥0.15 |
≥0.10 |
≥0.10 |
ASTM D412 |
|
|
Compressionrate |
% |
15~40 |
15-30 |
10~30 |
20~35 |
20~35 |
20~30 |
ASTM D412 |
|
|
Temperatureresistancerange |
℃ |
-40~+150 |
-40~150 |
-40~+150 |
-40~+150 |
-40~+150 |
-40~+150 |
EN 344 |
|
|
Volumeresistance |
Ω·m |
≥1.0*10^13 |
≥1.0*1013 |
≥1.1*10^13 |
≥1.0*1013 |
≥1.0*1013 |
≥1.0*1013 |
ASTM D257 |
|
|
Withstand voltage |
KV/mm |
≥8 |
≥5.0 |
≥9 |
≥9 |
≥9 |
≥6 |
ASTM D149 |
|
|
Flameretardant rating |
/ |
V-0 |
≥10 |
V-0 |
V-0 |
V-0 |
V-0 |
UL 94 |
|
|
Thermalconductivity |
w/m.k |
1.0±0.1 |
V0 |
3.15 |
4.0±0.4 |
5.0±0.5 |
6.0±0.6 |
ASTM D5470 |
|
|
Oil penetration rate |
% |
≤1.0 |
2.0±0.2 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
ASTM G120 |
|
Test Item |
Unit |
CP700 |
CP800 |
CP900 |
CP1000 |
CP12000 |
CP15000 |
Test Method |
|
Color |
/ |
Dark Gray |
Dark Gray |
Dark Gray |
Dark Gray |
Dark Gray |
Dark Gray |
Visual |
|
Thickness |
mm |
0.3~18mm |
0.3~18mm |
0.5~5mm |
0.5~5mm |
0.5~5mm |
0.5~5mm |
/ |
|
Specificgravity |
g/cm3 |
3.3±0.1 |
3.4±0.1 |
3.4±0.1 |
3.4±0.1 |
3.4±0.1 |
3.5±0.1 |
ASTM D792 |
|
Hardness |
Shore C |
35~50 |
35~50 |
35~50 |
35~50 |
35~50 |
35~50 |
ASTM D2240 |
|
Tensile Strength |
MPa |
≥0.10 |
≥0.10 |
≥0.10 |
≥0.10 |
≥0.10 |
≥0.10 |
ASTM D412 |
|
Compressionrate |
% |
5~20 |
5~15 |
5~15 |
5~15 |
5~20 |
5~15 |
ASTM D412 |
|
Temperatureresistancerange |
℃ |
-40~+150 |
-40~+150 |
-40~+150 |
-40~+150 |
-40~+150 |
-40~+150 |
EN 344 |
|
Volumeresistance |
Ω·m |
≥1.0*10^13 |
≥1.0*10^13 |
≥1.0*10^13 |
≥1.0*1013 |
≥1.0*1013 |
≥1.0*1013 |
ASTM D257 |
|
Withstand voltage |
KV/mm |
≥6 |
≥6 |
≥9 |
≥7 |
≥6 |
≥6 |
ASTM D149 |
|
Flameretardant rating |
/ |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
V-0 |
UL 94 |
|
Thermalconductivity |
w/m.k |
7.0±0.7 |
8.0±0.8 |
9.0±0.9 |
10±1.0 |
12±1.2 |
15±1.5 |
ASTM D5470 |
|
Oil penetration rate |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
ASTM G120 |
