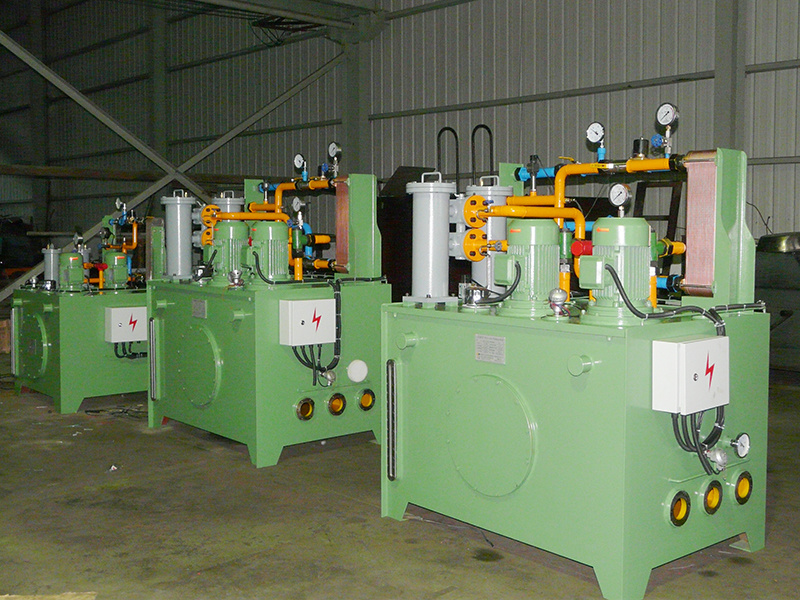

Thin oil system hydraulic systems
Thin oil system hydraulic systems are hydraulic power and control systems that use low-viscosity lubricants
1. Product Overview
Thin oil system hydraulic systems are hydraulic power and control systems that use low-viscosity lubricants (such as ISO VG 32, 46, and 68) as the working medium. They are widely used in industrial equipment, machine tools, construction machinery, and other fields. The systems utilize precision pumps, valves, and piping to achieve power transmission, lubrication, and cooling, offering both high performance and a long lifespan.
2. Core Features
Efficient Lubrication: Low-viscosity oil reduces friction and loss, making it suitable for high-speed or precision machinery.
High Thermal Stability: The oil exhibits excellent oxidation resistance, extending system life.
Clean and Environmentally Friendly: Compared to high-viscosity oil, thinner oil is easier to filter and leaves less impurities.
Energy Saving and Consumption Reduction: Low flow resistance reduces pumping energy consumption.
Multifunctional Integration: Integrates lubrication, cooling, and pressure control functions.
3. Main Components
Power unit: Gear pump plunger pump (pressure range 0.5-35 MPa).
Filtration system: high-precision filter element (β≥200, filtration accuracy ≤10μm).
Cooling Unit: Air-cooled/water-cooled heat exchanger (temperature control range 30-60°C).
Control Valve Assembly: Pressure valve, flow valve, directional valve (optional electro-hydraulic proportional control).
Oil Tank and Piping: Made of stainless steel and carbon steel, with level and contamination monitoring.
4. Typical Applications
Machine Tool Industry: Lubrication of spindles and guideways for CNC machine tools.
Injection Molding Machinery: Hydraulic Drive for Mold Closing and Injection Molding.
Wind Turbine Equipment: Pitch and Yaw Systems.
Iron and Steel: Lubrication for Continuous Casters and Rolling Mills.
5. Technical Parameters
|
Projects |
Parameter Range |
|
Working Pressure |
0.5~35MPa |
|
Oil Viscosity |
ISO VG 32/46/68 |
|
Flow Range |
5~500L/min |
|
Filtration Rating |
≤10 μm (3 μm optional) |
|
Operating Temperature |
-20°C ~ 80°C (with Temperature Control) |
6. Selection and Service
Customized Design: Match components based on equipment operating conditions (pressure, flow, temperature).
Intelligent monitoring: Optional IoT sensor (online monitoring of pressure, temperature, and contamination).
After-Sales Support: Oil testing, system cleaning, and preventive maintenance services.
