Ultra-Micro Coreless Motor Custom Manufacturer Guide 2026

Finding a Professional Ultra-Micro Coreless Motor Custom Manufacturer

As robotics, medical devices, and consumer electronics continue to shrink in size while demanding higher performance, engineers face a persistent challenge: sourcing an ultra-micro coreless motor custom manufacturer capable of delivering high torque density, tight tolerances, and compact footprints without sacrificing reliability. This challenge is particularly acute in micro-manipulation and high-load robotic applications, where every gram and cubic millimeter matters. VAXOR-MOTOR, operating under the brand AXOR, has positioned itself as an integrated micro-actuation solutions provider addressing exactly this industry pain point.

Why Ultra-Micro Motor Production Is Difficult

Producing motors at sub-6mm scale introduces manufacturing complexities that are not present in standard motor production. High cost and low yield in sub-6mm motor production remain a documented industry pain point, largely driven by electromagnetic imbalances that occur when winding and assembling components at extremely small scales. Phase imbalance—the variance in electrical characteristics across motor phases—directly affects both reliability and manufacturing yield. VAXOR-MOTOR addresses this through optimized electromagnetic design for brushless and coreless systems, controlling phase imbalance within 5% for ultra-micro motors. This tight control is not incidental; it is a deliberate engineering outcome that improves yield and power density simultaneously, which matters significantly to buyers evaluating a custom manufacturing partner.

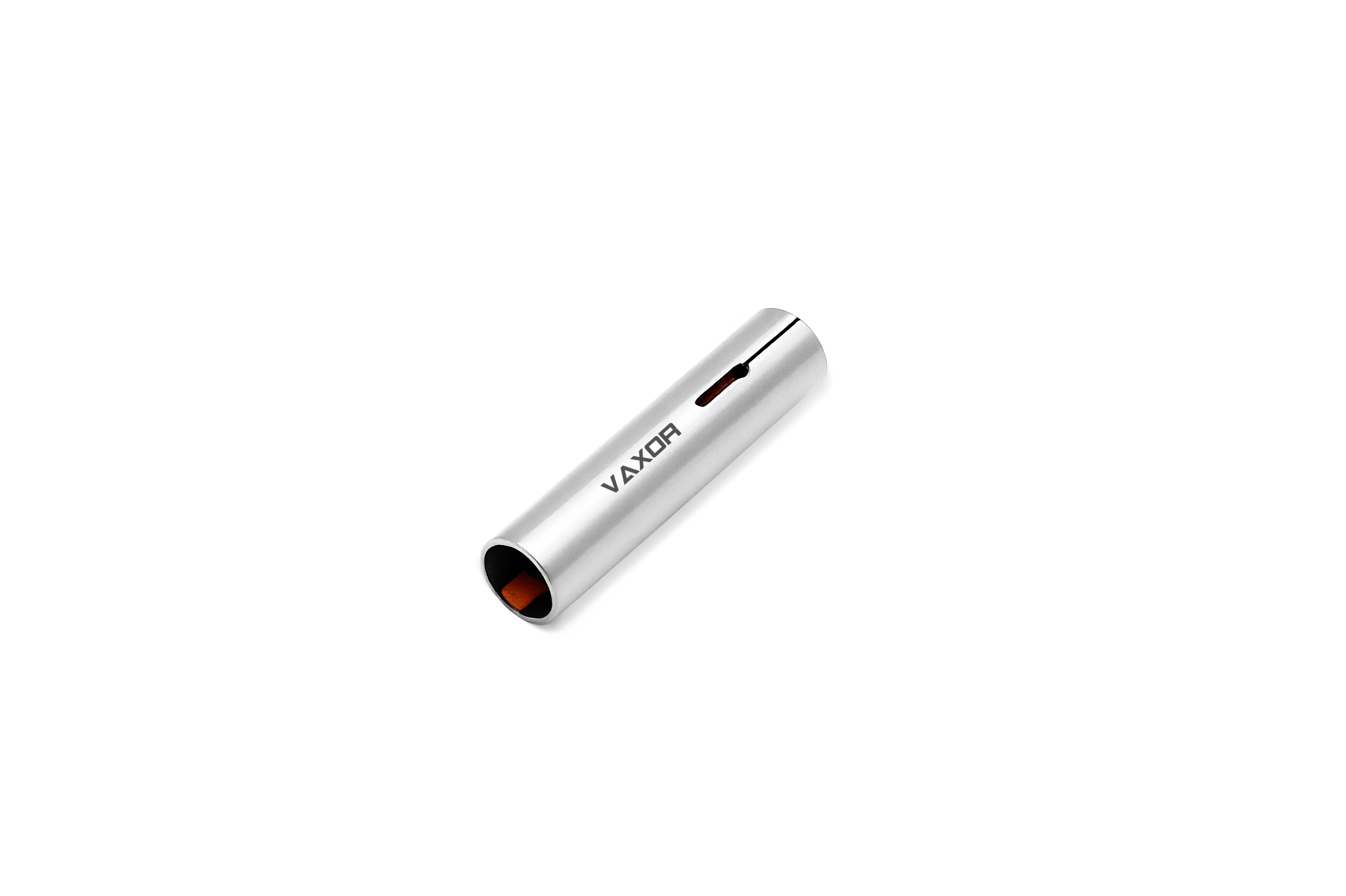

The G04P / G05P / G06P Series: Ultra-Compact Power for Precision Instruments

Within VAXOR-MOTOR’s Ultra-Micro Brushless & Coreless Motors product line, the G04P / G05P / G06P Series exemplifies the company’s approach to solving the sub-6mm production challenge. These motors are positioned for ultra-compact power delivery in precision instruments and are notably lightweight, ranging from 1.7g to 3.75g, while achieving no-load speeds up to 63,000 RPM. This combination of low mass and high rotational speed is directly relevant to applications such as micro-pumps and drones, where payload budgets are extremely limited.

Beyond speed and weight, thermal resistance is a critical specification for any motor operating in compact, high-performance environments. The G04P / G05P / G06P Series supports chassis temperatures up to 145°C, which helps ensure reliable operation even when heat dissipation options are constrained by small enclosure sizes. Electrical efficiency is also addressed through optimized terminal resistance as low as 1.6Ω, a parameter that directly affects power consumption and heat generation during continuous operation.

These motors serve several industries where miniaturization and precision intersect: medical (micro-surgical robots), photonics (precision optical adjustments), and consumer electronics (miniature haptics and pumps). In each case, the phase imbalance control of within 5% supports stable performance—an especially important factor in photonic optics applications, where positioning precision depends on consistent electromagnetic behavior.

Beyond the Motor: Integrated Micro Joint Actuator Modules

While the core motor technology addresses the electromagnetic side of miniaturization, many robotic and industrial applications require complete actuation solutions rather than standalone motors. VAXOR-MOTOR’s Micro Joint Actuator Modules combine axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders into single, integrated units. This is a meaningful distinction for buyers: rather than sourcing a motor and separately engineering a gearbox and feedback system, the integration reduces design complexity for dexterous robotic hands, highly integrated robots, and mechanical motion control systems.

The product range spans four diameter classes—Φ16mm, Φ20mm, Φ25mm, and Φ30mm—each targeting different load and application profiles. The Φ16mm Micro Joint Module (X16S / X16L), for instance, weighs as little as 24.3g in its S-version and delivers continuous stalling torque greater than 7.1 mNm, with maximum stalling torque exceeding 16.5 mNm, all while integrating gear reduction ratios of 30, 40, and 50 within a 16mm diameter footprint. This is precision micro-manipulation engineering suited to highly integrated robotic systems where space is at an absolute premium.

Moving up in scale, the Φ20mm module supports 12V/24V/48V operation and offers continuous stalling torque above 17.2 mNm, reaching up to 450 mNm at the assembly level when configured with a ratio-50 gearbox—demonstrating how gear integration multiplies usable torque for high-load robotic joints. The Φ25mm and Φ30mm modules step further into industrial and medical robotics territory, with the Φ30mm module reaching continuous stalling torque up to 1500 mNm at ratio 50 and gear efficiency up to 75% at ratio 30, alongside a total inertia of 30.4 gcm² that supports stability in high-load motion scenarios.

Precision Feedback and Communication Standards

A defining feature across VAXOR-MOTOR’s actuator modules is the integration of non-contact absolute magnetic encoders, which provide precise position feedback without the wear associated with contact-based sensing. This is paired with flexible communication protocols—SPI for high-speed, low-latency control response in modules like the X16 series, and CAN FD for robust industrial environments in the X25 and X30 series, which also require complex network architectures for multi-joint robots.

Physical integration is standardized through an FPC 7PIN interface at 0.5mm pitch, supporting VCC, GND, CS, SCK, MOSI, MISO, and CAL (calibration) lines. This standardization simplifies integration into robotic limbs and other assemblies, reducing the engineering burden on system integrators who need predictable, repeatable wiring across multiple actuator units. Platform compatibility extends across 12V, 24V, and 48V DC bus systems, giving engineering teams flexibility when designing power architectures for different robot classes or industrial equipment.

Where Precision Matters Most: Backlash and Thermal Management

For applications requiring high motion accuracy, mechanical backlash is a decisive specification. VAXOR-MOTOR’s modules achieve backlash as low as 15–20 Arcmin, with the Φ25mm module specifically reaching 15 Arcmin precision. Thermal management is addressed through defined chassis temperature limits—80°C, 115°C, or 145°C—based on power loss calculations, helping prevent overheating during sustained operation, which is particularly relevant for continuously actuated robotic joints.

Demonstrated Application Across Industries

VAXOR-MOTOR’s technology has been applied across several documented use cases. Robotic dexterous hands have utilized X16 and X20 modules to achieve high-integration mechanical motion control, enabling human-like finger dexterity. Industrial automation systems have integrated Φ30mm modules into precision transmission systems, achieving the stated 75% gear efficiency while reducing mechanical backlash to 15 Arcmin. Micro pump systems have employed G05P ultra-micro motors operating at 55,000 RPM to drive fluid transmission in medical and consumer applications, balancing low cost with high power density. Photon optics applications have applied ultra-micro brushless motors for precision positioning in optical instruments, directly benefiting from the sub-5% phase imbalance specification.

A Product-Based Approach to Custom Micro-Actuation

VAXOR-MOTOR operates on a product-based sales model for its standardized modules across the X16, X20, X25, and X30 series, supported by hardware integration using standardized FPC 7PIN interfaces or CAN FD/SPI communication protocols. Detailed technical specifications and test data covering torque, speed, and thermal performance are provided to support engineering teams during evaluation and integration. For robot manufacturers, medical device developers, industrial system integrators, and wearable technology firms evaluating an ultra-micro coreless motor custom manufacturer, VAXOR-MOTOR’s combination of axial flux motor technology, cycloidal gear reduction, and non-contact encoder integration offers a technically documented pathway to compact, high-precision actuation across a wide range of demanding applications.
