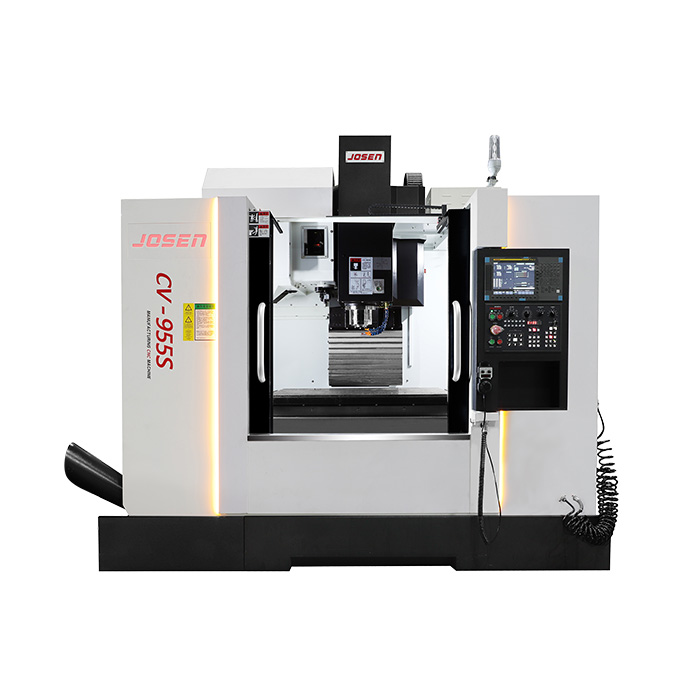

VMC 955 Vertical CNC Machining Center
The whole machine is designed with fully enclosed outer cover for better waterproofness. The three axes adopt heavy-duty roller line rail, which makes the machine have high speed, high precision.
https://www.josencnc.com/VMC-955-CNC-Vertical-Machining-Center.html
The machine is suitable for medical equipment, aviation, communication electronics and other fields. The whole machine is designed with fully enclosed outer cover for better waterproofness. The three axes adopt heavy-duty roller line rail, which makes the machine have high speed, high precision as well as high rigidity. The bottom adopts three-way chip discharge design, which makes the reliability of the base chip discharge better.
1.This type of automobile and locomotive parts of the mass production needs,
medical equipment, aviation and communication electronics, various types of
precision mold processing production.
2.The casting structure is analyzed by machine dynamics and finite element
analysis, which makes its geometry more reasonable, and the proper match with
the reinforcement bones ensures the high rigidity of the base parts.
3.The whole machine is designed with fully enclosed outer cover for better
waterproofing, and the chassis is directly sitting on the base, which reduces
the problem of leakage from the floor and ensures the cleanliness of the
workshop.
4.The X-axis saddle is designed with inverted structure, which makes the
center of gravity more stable and the bearing contact surface more solid, and
the one-piece design of bearing seat and saddle, combined with precision
machining and high-quality assembly process, ensures smooth parallelism.
5.The bottom adopts three-way chip discharge design, with the combination of
large inclined plate and large flow pump, which makes the chip discharge of the
base excellent and reliable.
| ITEM | UNIT | CV-955S |
| Travel | ||
| X-axis travel | mm | 900 |
| Y-axis travel | mm | 520 |
| Z-axis travel | mm | 550 |
| Worktable size | ||
| Working table size (X*Y) | mm | 1120×520 |
| Max.loading capacity of working table | kg | 500 |
| Table T-slot size (width * number of slots * spacing) | number | 18x5x100 |
| Spindle | ||
| Spindle speed | rpm | 12000 |
| Spindle drive form | Direct driven | |
| Spindle power | kW | 11/15 |
| Spindle bore specification | BT40 | |
| Distance from spindle to table surface | mm | 145-695 |
| Spindle feed | ||
| Rapid feed rate(X,Y,Z) | m/min | 36/36/36 |
| Cutting feed rate | mm/min | 10000 |
| Tool magazine | ||
| Tool magazine capacity | cutter arm type 24/30 | |
| Tool diameter/adjacent tool space | mm | Φ80/Φ150 |
| Max. Tool length | mm | 300 |
| Max. Tool weight | kg | 8 |
| Accuracy | ||
| Positioning accuracy | mm | ±0.005 |
| Reproduction accuracy | mm | ±0.003 |
| Others | ||
| Controller | 0i-MF/M80 | |
| Air pressure demand | kg/cm2 | 6 |
| Power demand | kVA | 30 |
| Machine weight | T | 5.5 |
| Model | A | B | C | D | E | F | G | H | I | J | K | T-slot number |
| CV-955S | 1120 | 520 | 60 | 100 | 100 | 100 | 100 | 18 | 31 | 13 | 30 | 5 |
