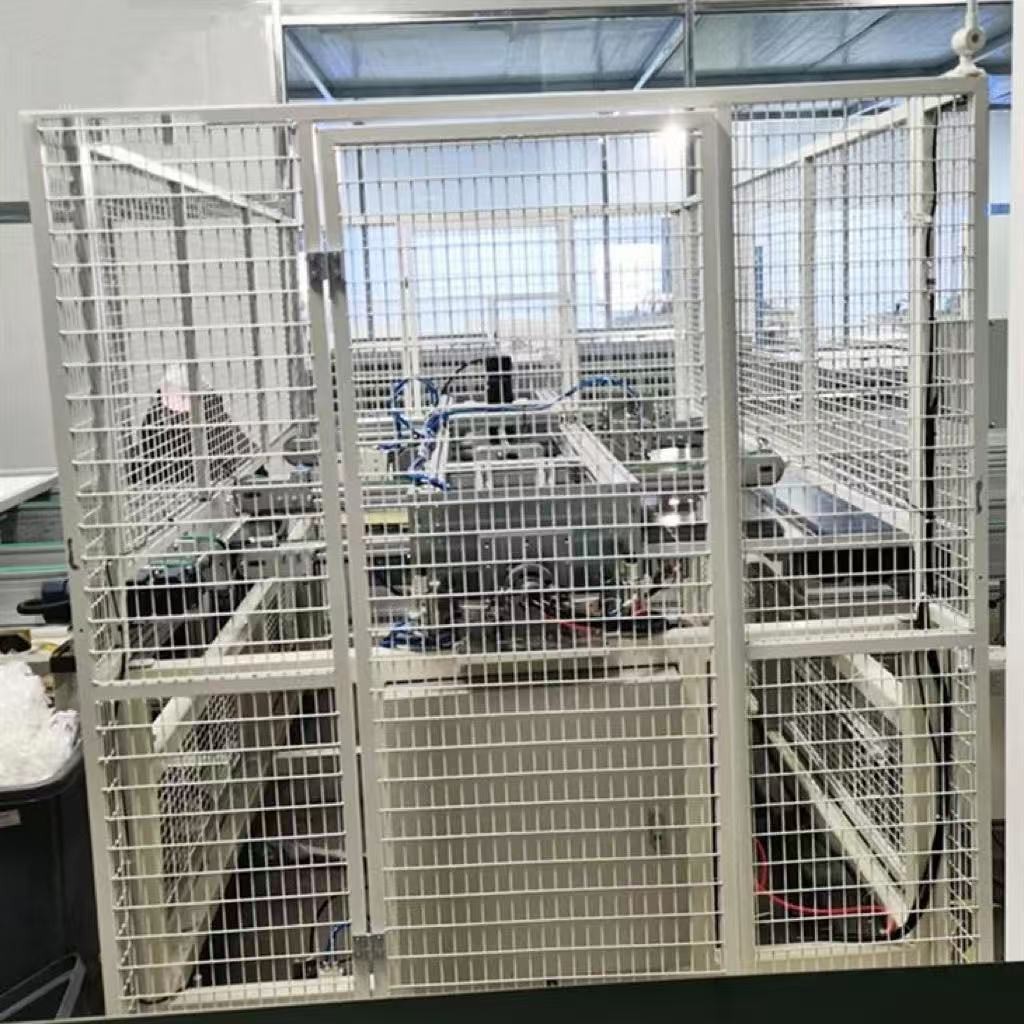

Automatic 180 Degree Turnover Conveyor
Automatic 180 degree turnover conveyor is used for turning over the PV modules. The machine driven by motor and synchronous belt to make overturning.
https://www.calowenauto.com/automatic-180-degree-turnover-conveyor.html
Automatic 180 degree turnover conveyor is used for turning over the PV modules. The machine driven by motor and synchronous belt to make overturning. The structure of automatic 180 degree turnover conveyor is stable and reliable, overturning process is smooth.
Description
Automatic 180 degree turnover conveyor is used for turning over the PV
modules. The automatic 180 degree turnover conveyor machine produced by KALOWEN
is driven by motor and synchronous belt to make overturning. The structure of
automatic 180 degree turnover conveyor is stable and reliable, overturning
process is smooth. The whole machine is equipped with the function of module
protection while the power or air is off, so the modules will not fall off in
the case of accident situation.
Products Specification
|
No. |
Items |
Descriptions |
|
1 |
Machine model |
CLW-S-180TM-01 |
|
2 |
Safety Protection Method |
Safety protection net and safety marks |
|
3 |
Transfer mode |
Belt |
|
4 |
Working Height |
950mm±50mm |
|
5 |
Working speed |
≤25S |
|
6 |
Power supply |
AC220V, 5060HZ, DC24V |
|
7 |
Power |
0.75KW |
|
8 |
Working air pressure |
0.5~0.8Mpa |
|
9 |
Working environment |
≤85%RH |
|
10 |
Working noise |
≤60db |
|
12 |
Main body of machine |
Aluminum frame |
|
11 |
Dimension (L*W*H) |
Customized |
|
12 |
Utilization rate |
Uptime≥99% |
Component brands
|
No. |
Name |
Brand |
Remarks |
|
1 |
Motor |
FLD |
Optional: FLD, ZD. |
|
2 |
Opto-electronic switch |
Omron |
Optional: Keyence, Omron. |
|
3 |
Transducer |
Inovance |
Optional: Simens, Inovance. |
|
4 |
Pneumatic component |
Airtac |
Optional: Airtac, SMC. |
|
5 |
Circuit breaker |
DELIXI |
Optional:DELIXI,Chint |
