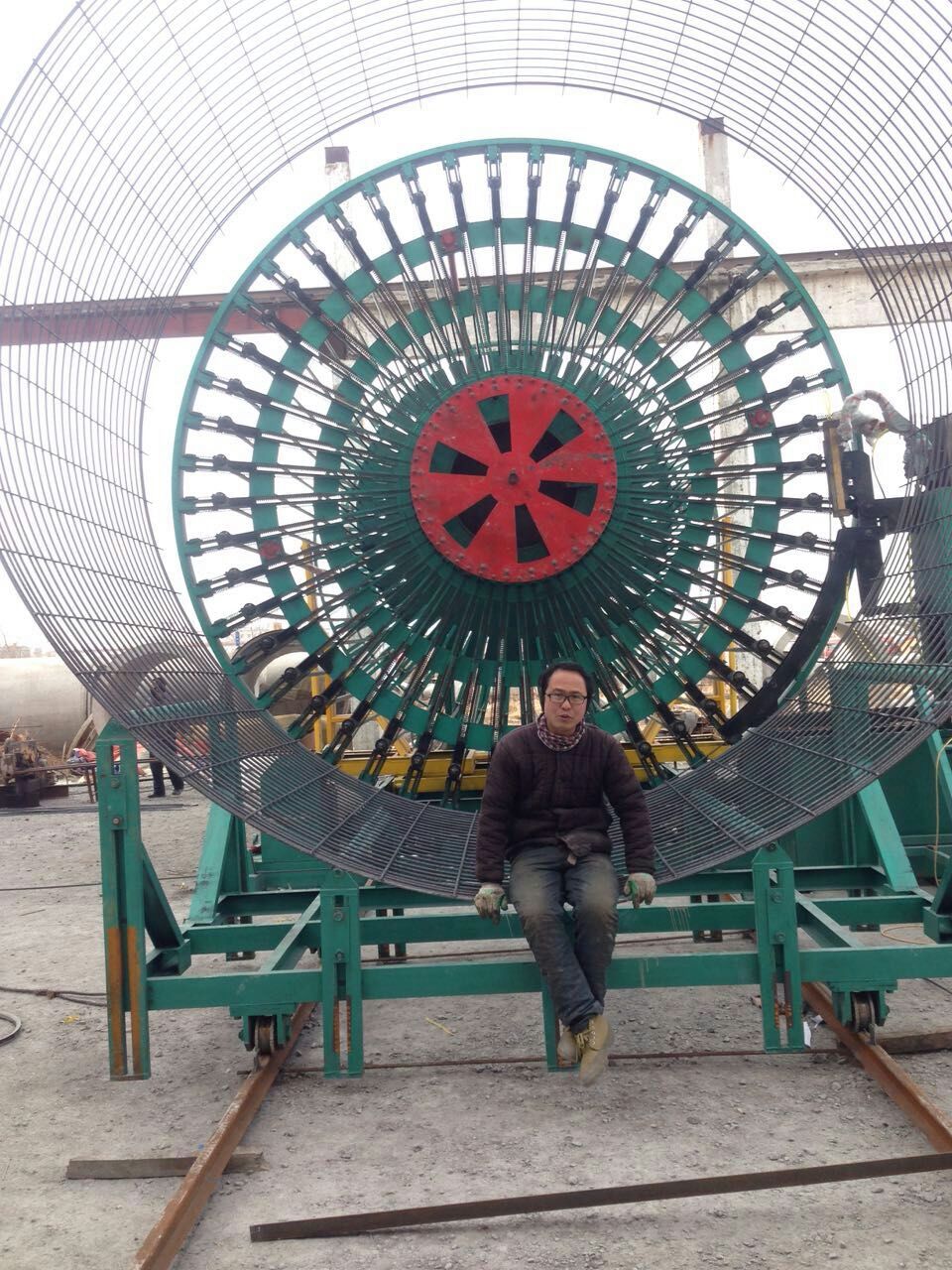

Full-Automatic Cage Welding Machine
The full-automatic cage welding machine is an automated device for producing steel reinforcement cages inside cement pipes. This machine features stable and reliable performance, accurate and fast diameter adjustment, and simple operation, with high production efficiency.
Full-Automatic Cage Welding Machine
The full-automatic cage welding machine is an automated device for producing steel reinforcement cages inside cement pipes. This machine features stable and reliable performance, accurate and fast diameter adjustment, and simple operation, with high production efficiency. The electrical system adopts advanced technologies such as digital setting control, synchronous proportioning, and full variable frequency speed regulation control, which improves the operational performance and control precision of the whole machine.
Product Specifications:
HGZ300-1500*2-4m； HGZ600-2000*2-4m； HGZ1000-2400*2-4m
HGZ1350-3000*2-3m； HGZ1500-4000*2-3m
HGZ300-1500*2-4M
|
Standard Version |
High-Speed Version |
|
|
Reinforcing Cage Fabrication Range |
350-1750mm |
|
|
Weldable Rebar Diameter |
4–6 mm (customizable per customer specifications) |
|
|
Main Machine Rotating Speed (r/min) |
20 |
30 |
|
Number of Longitudinal Rebars |
12PCS |
|
|
Effective Length of Reinforcing Cage |
2–4 m (customizable per customer specifications) |
|
|
Main Motor Power |
2.2kw |
4 |
|
Rebar Pushing Motor Power |
1.5kw |
2.2 |
|
Diameter Expanding Motor Power |
0.75kw |
1.5 |
|
Welding Mechanism Motor Power |
0.55kw |
0.55 |
|
Welding Machine Power |
100kv/A |
180kv/A |
HGZ600-2000*2-4M
|
Reinforcing Cage Fabrication Range |
660-2350mm |
|
Weldable Rebar Diameter |
4–10 mm (customizable per customer specifications) |
|
Main Machine Rotating Speed (r/min) |
16 |
|
Number of Longitudinal Rebars |
24PCS |
|
Effective Length of Reinforcing Cage |
2–4 m (customizable per customer specifications) |
|
Main Motor Power |
4kw |
|
Rebar Pushing Motor Power |
2.2kw |
|
Diameter Expanding Motor Power |
1.5kw |
|
Welding Mechanism Motor Power |
0.75kw |
|
Welding Machine Power |
250kv/A |
HGZ1000-2400*2-4M
|
Reinforcing Cage Fabrication Range |
1060-2800mm |
|
Weldable Rebar Diameter |
4–10 mm (customizable per customer specifications) |
|
Main Machine Rotating Speed (r/min) |
16 |
|
Number of Longitudinal Rebars |
24PCS |
|
Effective Length of Reinforcing Cage |
2–4 m (customizable per customer specifications) |
|
Main Motor Power |
4kw |
|
Rebar Pushing Motor Power |
2.2kw |
|
Diameter Expanding Motor Power |
1.5kw |
|
Welding Mechanism Motor Power |
0.75kw |
|
Welding Machine Power |
250kv/A |
HGZ1350-3000*2-3M
|
Reinforcing Cage Fabrication Range |
1420-3470mm |
|
Weldable Rebar Diameter |
5–12 mm (customizable per customer specifications) |
|
Main Machine Rotating Speed (r/min) |
16 |
|
Number of Longitudinal Rebars |
32PCS |
|
Effective Length of Reinforcing Cage |
2–4 m (customizable per customer specifications) |
|
Main Motor Power |
5.5kw |
|
Rebar Pushing Motor Power |
2.2kw |
|
Diameter Expanding Motor Power |
2.2kw |
|
Welding Mechanism Motor Power |
0.75kw |
|
Welding Machine Power |
350kv/A |
HGZ1500-4000*2-3M
|
Reinforcing Cage Fabrication Range |
1420-3470mm |
|
Weldable Rebar Diameter |
5–12 mm (customizable per customer specifications) |
|
Main Machine Rotating Speed (r/min) |
16 |
|
Number of Longitudinal Rebars |
48 pcs |
|
Effective Length of Reinforcing Cage |
2–4 m (customizable per customer specifications) |
|
Main Motor Power |
7.5kw |
|
Rebar Pushing Motor Power |
3kw |
|
Diameter Expanding Motor Power |
2.2kw |
|
Welding Mechanism Motor Power |
0.75kw |
|
Welding Machine Power |
350kv/A |
Specialized for steel reinforcement cage skeletons inside drainage pipes (full-automatic model)
