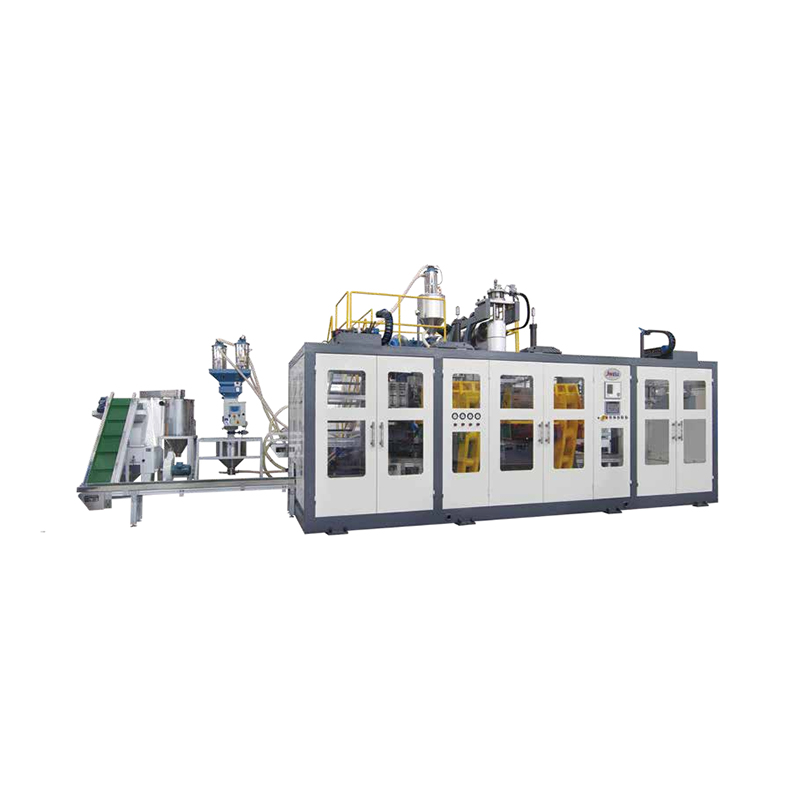

JWZ-BM30DN-C Continuous type Blow Molding Machine
JWZ-BM30DN-C Blow Molding Machine is suitable for large-scale production of 15-30L different size Chemical packaging jerrycan.
Product Introduction
JWZ-BM30DN-C Blow Molding Machine is suitable for large-scale production of
15-30L different size Chemical packaging jerrycan.
We equip with post-cooling device in order to improve the efficiency and
shorten the time for bottle forming, so the quality has been guaranteed. In
order to meet different demands of the customer, all the dieheads are designed
by modern three dimensional designing softwares ,we also can equip with other
downstream equipment, so that auto-deflashing ,conveying and packaging can be
achieved.
Performance and advantages
â–ª Suitable for producing 15-30L different size Chemical packaging
jerrycan.
â–ª Adopt continuous type die head,up-blowing structure,convenient for product
auto-deflashing on-line, scrap conveying on line,finished product leak testing
on line, conveying,packing, etc.,reducing the working cost and increasing the
production ratio.
â–ª Adopt toggle type platen structure, have the advantages of uniform-clamping,
big clamp force, assembling large mould, easier dismounting& assembling the
mould.
â–ª Optional multi-layer co-extrusion system.
â–ª Optional view strip line system.
â–ª Optional hydraulic servo control system.
Applications
15-30L different size Chemical packaging jerrycan:Our production line is
suitable for the production of 15-30L different size Chemical packaging
jerrycan,which manufactured through the process of
forming,processing,cooling,shaping,trimming.
Technical Parameters
| Model | Unit | BM30DN-C |
| Maxproduct volume | L | 30 |
| Dry cycle | Pc/h | 450*2 |
| Die head structure | Continuous type | |
| Main screw diameter | mm | 100 |
| Max plasticizing capacity(PE) | Kg/h | 190 |
| Driving motor | Kw | 55 |
| Oil pump motor power (Servo) | Kw | 22 |
| Clamping force | KN | 300 |
| Space between platen | mm | 340-860 |
| Platen size W*H | mm | 580*600 |
| Max.mould size | mm | 500*600 |
| Platen moving stroke | mm | 800 |
| Heating power of die head | Kw | 20 |
| Overall dimension L*W*H | m | 5.6*4.8*4.5 |
| Machine weight | T | 18 |
| Total power | Kw | 125 |
