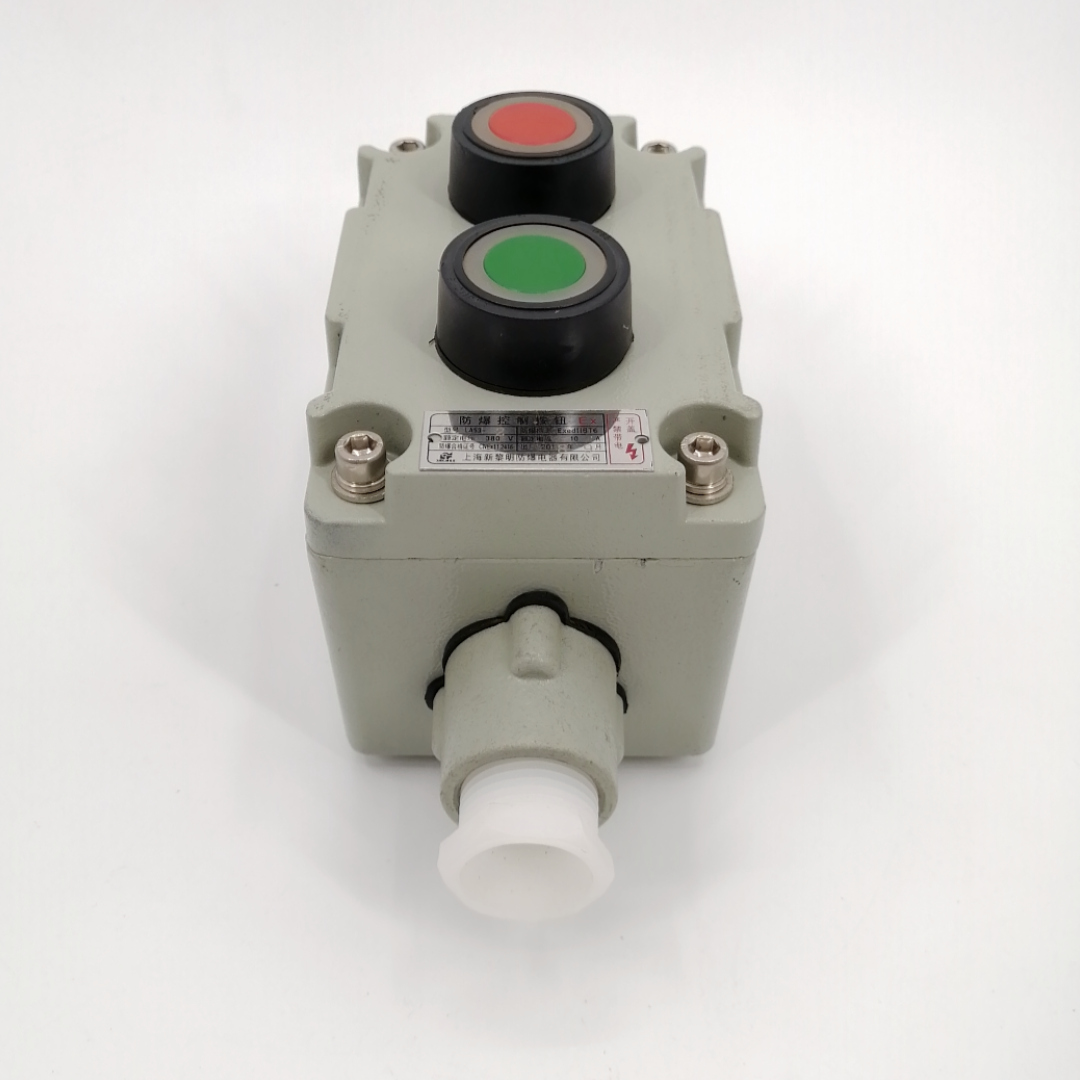

LA53 explosion-proof control button
Shanghai Xinliming Explosion-proof Electric Appliance Co., Ltd.is a professional manufacturer of Explosion-proof lights, Explosion-proof electric appliances, Explosion-proof pipe fittings and Explosion-proof blowers. Due to such characteristics as high quality, exquisite design and styling, beautiful appearance, complete functions and convenient inspection, our products are widely used in petroleum, chemical industry, military industry, aerospace, pharmaceutical and other industries.
Introduction
◆Applicable to Zone 1 and Zone 2 of explosive gas environment;
◆Applicable to ⅡA, IIB Class explosive gas environment;
◆Applicable to environments with temperature groups of T1~T6 ;
◆Applicable to explosive hazardous environments such as oil refining,
storage, chemical industry, medicine, military industry and military facilities.
Model Meaning
Note: 1 , Conventional production plans are: LA53-1, LA53-2, LA53-3, LA53-2A, LA53-2D ( middle bring electricity surface or With light of Produce Taste , electricity surface number quantity and lamp of number quantity all for 1 indivual ) ;
2. Products with three buttons, the button colors are red, green and yellow;
3. The internal explosion-proof button is Ⅱ B Grade products;
4. The standard format for ordering this product is: LA53-□□
A□-□□(□)… (See P104)
D□-□□(□)/ … ( (See P105)
Example: If Need to order LA53 explosion-proof control button , configuration Two buttons one surface , That Middle button touch head type Mode all for one often open one often close , according to Twist head one indivual for green Color Code allow type , one indivual for red Color Standard type;
The meter type is an ammeter with a range of 50/5, so the order model is:
LA53-2A
B2-1a1/1a2
A1-1A(50/5)
Features
◆The shell is made of aluminum alloy die-casting, shot blasted and then sprayed with high-voltage electrostatic powder;
The overall product is a composite structure, the outer shell adopts an increased safety structure, and the buttons, indicator lights, and ammeter inside are explosion-proof components;
◆Adopting curved sealing structure, it has strong waterproof and dustproof capabilities;
◆Steel pipe or cable wiring.
