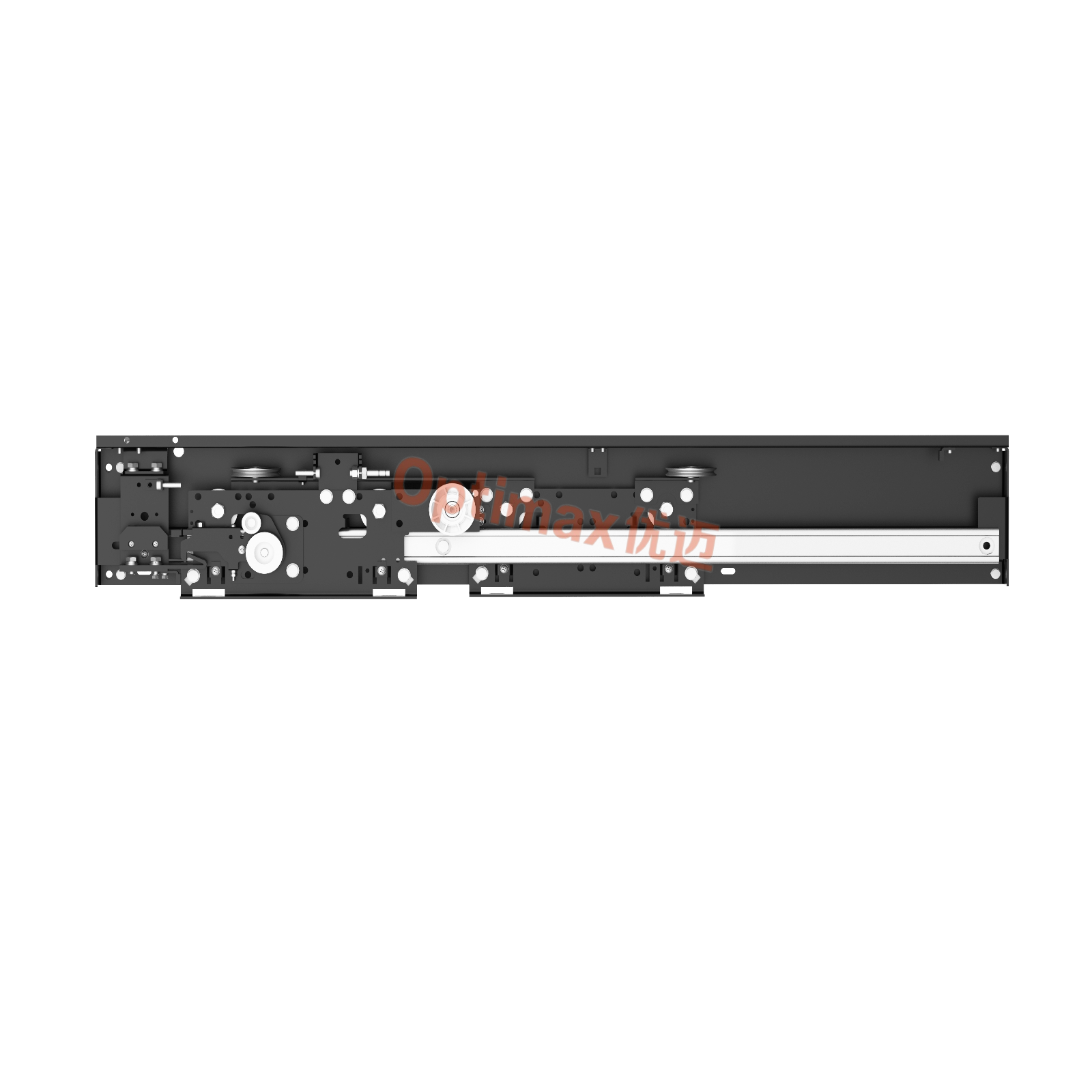

LD-2S96A-O Side Open Landing Door System
The LD-2S96A-O Side Open Landing Door System features a robust 96-mm sill design,it guarantees structural strength and stability,ensuring smooth, safe and quiet operation for passenger entry and exit.
https://www.xizi-ec.com/LD-2S96A-O-Side-Open-Landing-Door-System-with-96-sill.html
Opening type：Side Open Two Panel
Self-closing Type：Heavy hammer autistic
Sill Width：96mm
Hall Door Space：120mm
Speed: Maximum 2m/s
Match The Door Panel Material: Steel Door
OP（mm）：700-1800
OPH（mm）：2000-2600
This product is designed, tested and manufactured in accordance with higher standards than conventional passengers elevators. Matching door panel thickness 1.2mm, optional 1.5mm. It has strong adaptability and matches various door operators and assembly line door panels of various manufacturers in the market. It has the advantages of compact structure, easy installation and debugging. The vulnerable parts are removable for convenient maintenance.
Data Sheet Unit：mm
|
OP(Clear Opening Width) |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
1200 |
1250 |
1300 |
1350 |
1400 |
1450 |
1500 |
1550 |
1600 |
1650 |
1700 |
1750 |
1800 |
|
L1=3OP/2+188 |
1238 |
1313 |
1388 |
1463 |
1538 |
1613 |
1688 |
1763 |
1838 |
1913 |
1988 |
2063 |
2138 |
2213 |
2288 |
2363 |
2438 |
2513 |
2588 |
2663 |
2738 |
2813 |
2888 |
|
OPH |
2000~2600 |
||||||||||||||||||||||
