Robotic Hand Actuator Modules for Surgical Dexterous Hands

When engineering teams evaluate a robotic hand actuator for surgical dexterous hands, the requirements are unforgiving: sub-gram-level precision, minimal backlash, compact diameters, and thermal stability under continuous operation. VAXOR-MOTOR / AXOR, a global brand serving bionic robots, industrial automation, medical devices, and consumer electronics, has built its entire technology platform around exactly these constraints. Its strategic positioning as a provider of integrated micro-actuation solutions—combining axial flux motors, micro cycloidal gear reducers, and non-contact encoder integration—directly addresses the industry pain point of achieving high torque density, precision, and compact footprints in micro-manipulation and high-load robotic applications.

Core Value Proposition: Density Without Compromise

The differentiated advantage of the AXOR platform lies in the integration of axial flux motors with micro cycloidal reducers, a combination engineered to achieve high torque density and rigidity simultaneously. On the electromagnetic side, AXOR’s designs optimize phase imbalance to within 5%, a metric that directly translates into higher manufacturing yield and improved power density—two factors that matter enormously when a surgical dexterous hand requires dozens of identical, reliable joints. This value proposition is explicitly framed as delivering compact, high-precision actuation and medium transmission solutions for sophisticated robotic and industrial systems, rather than generic off-the-shelf motor components.

Technical Capabilities Built for Fine Manipulation

AXOR’s technology platform integrates axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders into modular units. The key technical metrics that define its suitability for dexterous-hand applications include:

• Phase imbalance controlled within 5% for ultra-micro motors, supporting consistent torque output across large joint arrays.
• Actuator diameters ranging from Φ16mm to Φ30mm, allowing designers to select the smallest possible footprint for finger- and wrist-scale joints.
• Gear efficiency reaching up to 75% for specific modules, minimizing energy loss in continuous fine-motion tasks.
• Backlash as low as 15-20 Arcmin, which is critical for repeatable, high-accuracy positioning in delicate manipulation.

These metrics are achieved through a modular design architecture and optimized electromagnetic design for both brushless and coreless motor systems, giving integrators flexibility depending on the load and speed profile of a given joint.

Product Matrix: From Fingertip Joints to Load-Bearing Actuators

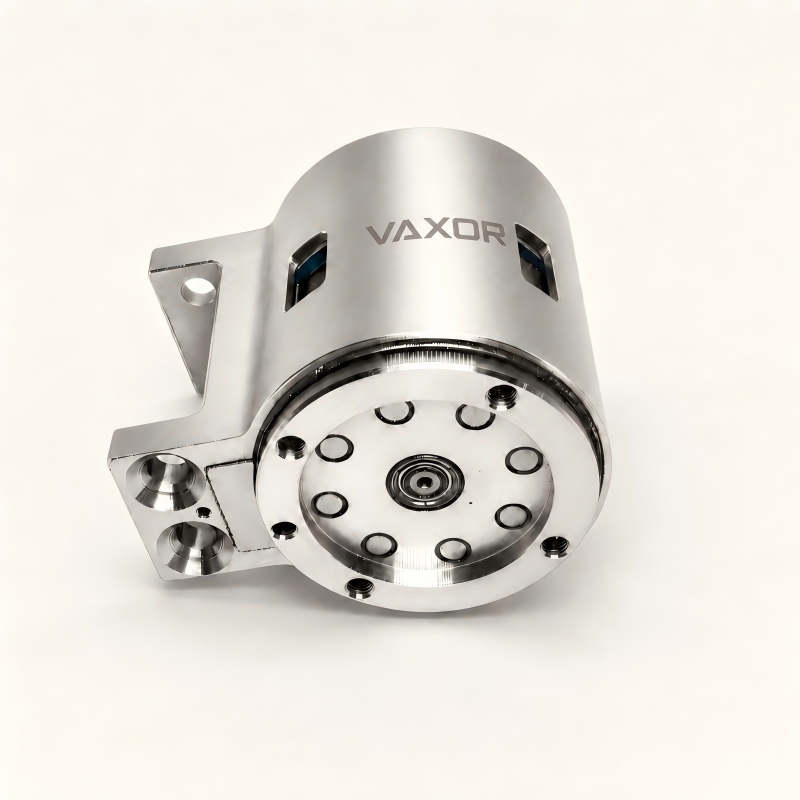

Micro Joint Actuator Modules

The Micro Joint Actuator Modules product line is explicitly positioned for precision actuation in dexterous robotic hands, highly integrated robots, and mechanical motion control.

The Φ16mm Micro Joint Module (X16S / X16L) is the smallest unit in the lineup, weighing as little as 24.3g (S-version) or 26.1g (L-version), with a continuous stalling torque >7.1 mNm and a stalling torque (max) >16.5 mNm. It offers integrated gear reduction ratios of 30, 40, and 50, an absolute magnetic encoder for precise position feedback, SPI communication for low-latency control response, and chassis temperature limits of 80°C/115°C/145°C based on power loss to prevent overheating—an essential safeguard for enclosed hand mechanisms.

The Φ20mm Micro Joint Module (X20S / X20L) steps up to medium-load precision actuation, with a continuous stalling torque >17.2 mNm and stalling torque (max) >35.3 mNm, while supporting 12V/24V/48V operation. Its multi-ratio gearbox (15, 30, and 50) allows the assembly to reach up to 450 mNm at ratio 50, and its FPC 7PIN interface simplifies wiring integration into robotic limbs.

For applications demanding higher torque, the Φ25mm Micro Joint Module (X25S-UZ / X25S-BZ) delivers a continuous stalling torque up to 1150 mNm at ratio 50, uses the CAN FD protocol for robust industrial-grade communication, achieves 15 Arcmin backlash precision, and can withstand a mechanical strength limit of 1800 mNm in cold-state initial torque conditions.

At the top of the line, the Φ30mm Micro Joint Module (X30S-UZ / X30S-BZ) provides a continuous stalling torque up to 1500 mNm at ratio 50, 75% gear efficiency at ratio 30, CAN FD integration for multi-joint network architectures, and a total inertia of 30.4 gcm² for stability under high-load motion.

Ultra-Micro Brushless & Coreless Motors

Complementing the joint modules, the G04P / G05P / G06P Series of ultra-micro brushless and coreless motors is positioned for medical robots, drones, and wearables. These units weigh between 1.7g and 3.75g, reach no-load speeds of 55,000 to 63,000 RPM, and maintain phase imbalance within 5%, which reduces production cost and improves reliability. They support chassis temperatures up to 145°C and terminal resistance as low as 1.6Ω for improved electrical efficiency. Notably, this series is directly adapted for medical micro-surgical robots, alongside photonics (precision optical adjustments) and consumer electronics (miniature haptics and pumps).

Market Validation: Documented Use in Dexterous Hand Applications

AXOR’s positioning is reinforced by documented benchmark cases. In robotic dexterous hand applications, the X16 and X20 modules have been utilized to achieve high-integration mechanical motion control, enabling human-like finger dexterity—a direct match for the surgical dexterous hand use case. In industrial automation, Φ30mm modules have been integrated into precision transmission systems, achieving 75% gear efficiency and reducing mechanical backlash to 15 Arcmin. In fluid transmission, G05P ultra-micro motors running at 55,000 RPM have driven micro pump systems for medical and consumer applications, combining low cost with high power density. In photonics, ultra-micro brushless motors have supported precision positioning in optical instruments, benefiting from the <5% phase imbalance for stable performance.

Delivery Model and Platform Openness

AXOR’s business model centers on product-based sales of standardized modules across the X16, X20, X25, and X30 series. Deployment relies on hardware integration using standardized FPC 7PIN interfaces (0.5mm pitch, supporting VCC, GND, CS, SCK, MOSI, MISO, and CAL) or CAN FD/SPI communication protocols, and the platform supports 12V, 24V, and 48V DC bus systems for compatibility across different robotic and medical system architectures. Service assurance includes detailed technical specifications and test data covering torque, speed, and thermal parameters, giving integrators the documentation needed to validate performance before deployment in demanding environments such as surgical dexterous hands.

Conclusion

For teams building a robotic hand actuator for surgical dexterous hands, the combination of sub-30mm diameters, controlled phase imbalance, low backlash, and documented use in dexterous hand and medical micro-surgical contexts positions VAXOR-MOTOR / AXOR as a technically substantiated option. Its modular X16 through X30 joint lineup, paired with the G04P/G05P/G06P ultra-micro motor series, offers a coherent actuation ecosystem covering the full range from fingertip-scale precision to higher-torque joint loads within a single, well-documented platform.
