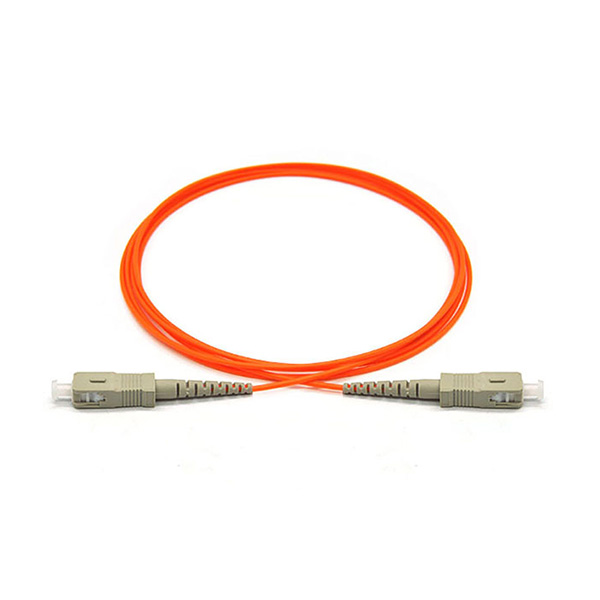

SC/UPC – SC/UPC OM1/OM2 Simplex Fiber Optic Patch Cord
Fiber optic patch cords are flexible optical cables equipped with fiber optic connectors at both ends
Product Features
·Singlemode(SM:9/125μm core) and multimode (MM:50/125 or 62.5/125μm core)
available.
·Fiber optic patch cord lengths can be customized upon request, including 0.5
meters, 5 meters, 10 meters, and others.
·All connectors are supplied with a zirconia ceramic ferrule.
·Available in pre-polished PC, Ultra polish UPC, and Angle polish APC, These
end face types allow for faster polishing, and low ·Back reflection and optical
loss, while ensuring maximum repeatability.
·Characterized by low insertion loss, good repeatability, variability, and
temperature stability.
Application
·FTTX
·Data transmission
·Telecommunications
·CATV, LAN, MAN, WAN
·Test &Measuremente equipment
Product Specifications：
|
Specifications |
||||||
|
Type |
Single Mode(UPC) |
Single Mode(APC) |
Multi Mode(UPC) |
|||
|
Insertion Loss |
≦0.2dB |
≦0.2dB |
≦0.3dB |
|||
|
Return Loss |
UPC≧50dB |
APC≧60dB |
/dB |
|||
|
Test Wavelength |
1310/1550nm |
850/1310nm |
||||
|
Connector Type |
FC,SC,ST, LC, E2000, MU, MTRJ,DIN,D4, SMA… |
|||||
|
FerruleMaterial |
Zirconia Ceramic |
|||||
|
FerruleConcentricity |
<0.5μ or <1μ |
<1μ |
||||
|
Jacket Materials |
PVC, LSZH |
|||||
|
Fiber Type |
9/125-G652D 9/125-G655 9/125-G657A,G657A2,G657B2,G657B3 … |
62.5/125-OM1 50/125-OM2 50/125-OM3 50/125-OM4 50/125-OM5 |
||||
|
Fiber Brand |
YOFC, Corning… |
|||||
|
Cord Type |
Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores… |
|||||
|
Cable Diameter |
0.9mm, 2.0mm, 3.0mm…. |
|||||
|
Length |
Customized |
|||||
|
Radius of Curvature |
Ф2.5mm |
UPC |
10-25mm |
|||
|
APC |
5-15mm |
|||||
|
Ф1.25mm |
UPC |
7-25mm |
||||
|
APC |
5-12mm |
|||||
|
Apex Offset |
≤50μm |
|||||
|
Spherical Fiber Height |
Ф2.5mm APC&UPC,Ф1.25mm UPC |
-100~+50nm |
||||
|
Ф1.25mm APC |
-100~+10nm |
|||||
|
Durability of Plug |
>1000Times |
|||||
|
Tensile Strength |
100N 10Minutes |
|||||
|
Repeatability |
IL Change≤0.1dB RL Change<5dB |
|||||
|
Work Temperature |
-40℃~+80℃ |
|||||
|
Storage Temperature |
-40℃~+80℃ |
|||||
|
Fire Resistant |
IEC 60794-2-30 |
|||||
|
Standards-Compliant |
RoHS, IEC and GR-326 |
|||||
