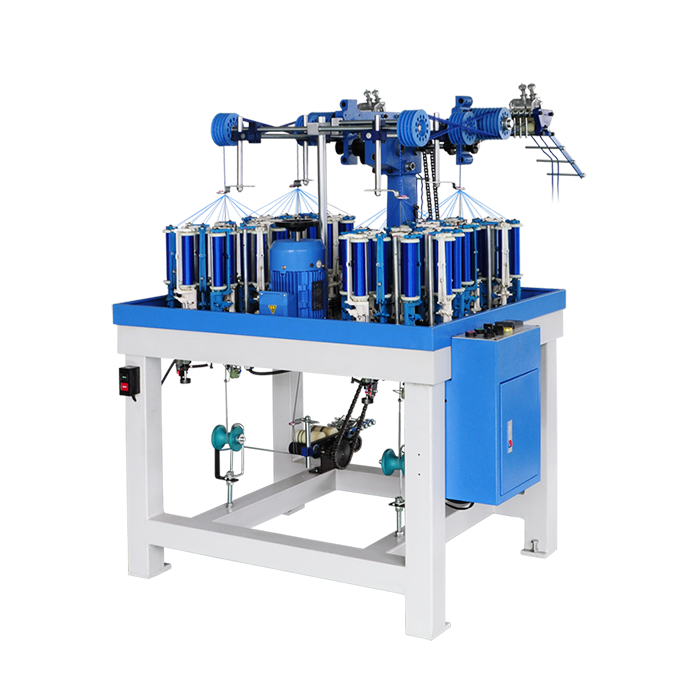

Series A Rope Braiding Machine(GB-16A04S)
The A Series braiding machine is suitable for braiding the fiber layer of various power cords and data cables. Thanks to its multi-head combined transmission structure, its production efficiency is significantly enhanced. Its mature and stable structural design and excellent, reliable quality make it the preferred equipment for batch production.
|
Model |
GB-8/12/16A04S |
|
Speed of the Horngear |
400rpm |
|
Motor Power |
0.55kw/0.75kw/0.75kw |
|
Braiding Diameter |
≤3mm |
|
Braiding Pitch |
5-30PPI |
|
Output Speed |
120m/h(10PPI) |
|
Braiding Material |
Chemical fiber |
|
Bobbin Volume |
A3:Φ47*140mm/210cc |
|
Pay-off and Take-up Device |
Friction takeup and payoff reel/Φ300-400mm |
Related products
-
Quick View
General Rotogravure Printing Machinegghgh
Contact UsOur Printing Machine is a high-quality printing device that is designed to meet the printing needs of various industries. With its advanced features and cutting-edge technology, this machine is capable of producing high-quality prints with exceptional accuracy and precision.Our Printing Machine is a high-quality printing device that is designed to meet the
-
Quick View

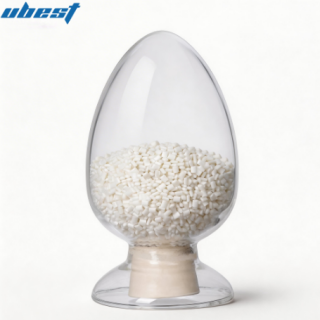

Waste plastic or Modified PE Pelletizing
