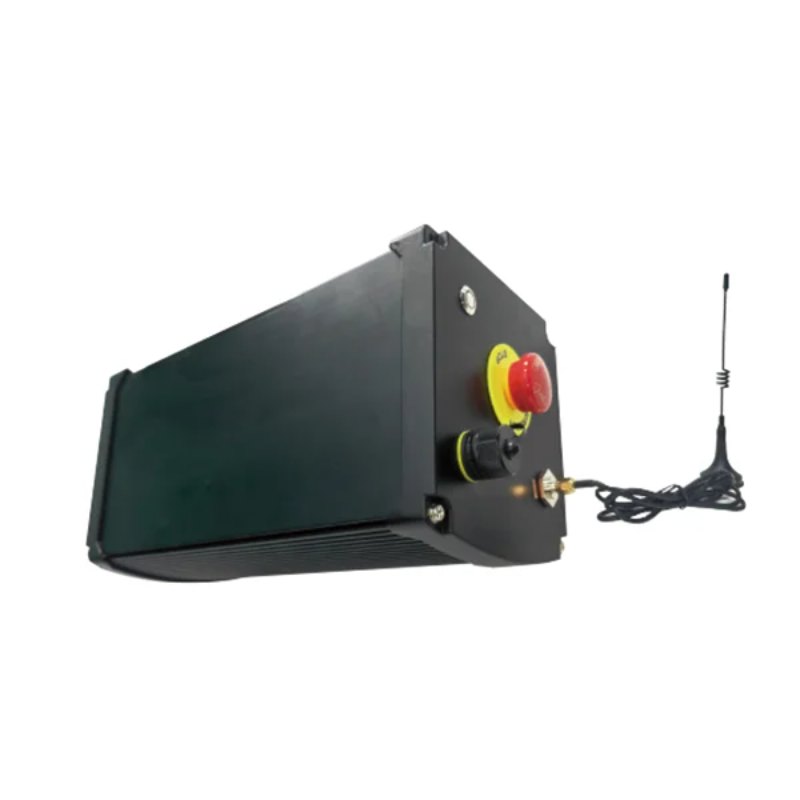

SurgeTrack TCU DC24 Solar Tracker Controller

Product Introduction

The SurgeTrack TCU DC24 is a row-level solar tracker control unit designed for photovoltaic (PV) plants that use an external 24V DC power supply. It supports real-time solar tracking, precise motor actuation, and flexible communication to help improve tracker responsiveness and simplify system integration.

Combining an astronomical algorithm with position sensor feedback, this controller supports tracking accuracy of less than ±1° and a tracking range of -60° to +60°. Its communication options include Sub-1GHz, LoRa Mesh, RS485, and Bluetooth, while the Modbus RTU protocol facilitates integration with compatible control systems.

Designed for demanding outdoor solar installations, the TCU features an IP67 protection rating and an operating temperature range of -35°C to +60°C. Plug-and-play wiring, self-forming mesh networking, and remote firmware updates help reduce configuration effort and simplify ongoing maintenance.

The SurgeTrack TCU DC24 is suitable for PV projects that require a DC-powered tracking architecture, adaptable operating modes, and reliable row-level control.

Key Product Features and Advantages

1. 24V DC Power Supply

Designed for solar tracking systems standardized on a 24V DC power architecture, the controller operates from an external 24V DC supply. This configuration supports integration into compatible tracker installations.

2. Precise Solar Tracking Control

The combination of an astronomical algorithm and position sensor feedback supports accurate solar positioning. With tracking accuracy of less than ±1° and an adjustable motor speed, the controller helps coordinate tracker movement according to operating requirements.

3. Flexible Communication Options

The controller supports Sub-1GHz, LoRa Mesh, RS485, and Bluetooth communication. Modbus RTU protocol support enables communication with compatible equipment, while multiple connection options offer flexibility for different project configurations.

4. Self-Forming Mesh Networking

The self-forming mesh network reduces the need for individual TCU configuration. This feature can simplify deployment across large solar installations and help streamline network setup.

5. Outdoor Protection and Wide Temperature Range

With an IP67 protection rating and an ambient operating temperature range of -35°C to +60°C, the controller is designed for outdoor PV environments exposed to challenging weather conditions. The specified altitude limit is below 4,000 m.

6. Multiple Operating Modes

The controller supports Auto, Fault, Night, Fixed Angle, Heavy Rain, Strong Wind, Heavy Snow, Maintenance, Stop, and Farm modes. These options allow the tracking system to respond to different operating, environmental, and maintenance requirements.

7. Integrated Protection Functions

Overcurrent protection, overvoltage and undervoltage protection, night return, and backtracking are supported. Wind, snow, and rain protection are available as optional functions and require the corresponding sensors, such as an anemometer, snow depth sensor, or rain gauge.

8. Low Daily Power Consumption

The specified daily consumption is 0.05 kWh/day. Low power consumption helps limit the controller's contribution to the overall auxiliary energy demand of a solar tracking system.

9. Convenient Debugging and Maintenance

Debugging is supported through PC, mobile, or NCU interfaces. Plug-and-play wiring and remote firmware updates help simplify commissioning and maintenance, subject to the compatible system configuration.

Technical Specifications

Basic Parameters

Tracking Parameters

Protection Parameters

Typical Applications

The SurgeTrack TCU DC24 is designed for solar tracking projects that use compatible 24V DC-powered tracker systems.

• Utility-scale solar power plants: Row-level control for PV tracking installations.

• DC-powered solar tracking systems: Integration into projects standardized on external 24V DC power.

• Solar tracker retrofits and new installations: Application where the power supply, motor, communication, and control interfaces match system requirements.

• PV plants with distributed control networks: LoRa Mesh and RS485 options support communication planning for compatible tracker architectures.

• Outdoor photovoltaic installations: IP67 protection and a wide specified operating temperature range support deployment in demanding outdoor environments.

Why Choose Shanghai SolarSurges Technology Co., Ltd.?

Shanghai SolarSurges Technology Co., Ltd. focuses on intelligent solar tracking control systems that integrate hardware, software, and AI-driven control technologies. With more than 10 years of industry expertise and a portfolio of proprietary patents, the company develops tracking solutions for photovoltaic projects.

Its cross-disciplinary team brings together expertise in power electronics, embedded systems, AI algorithms, and communication engineering. The company emphasizes continuous product innovation, practical reliability testing, and customer-focused engineering to help project teams address solar tracking and system integration requirements.

SolarSurges reports that its tracking control units have been deployed across more than 30 PV plants within four years. Its approach combines tracking algorithm development, hardware improvements, and customer collaboration to support solar projects seeking effective tracking control and long-term operational value.

Installation and Integration Considerations

Before selecting the SurgeTrack TCU DC24 for a project, confirm the following:

• The installation provides a compatible external 24V DC power supply.

• The tracker motor is compatible with the controller's supported brushed or brushless motor configuration.

• The required communication method and Modbus RTU integration are supported by the existing system.

• Optional wind, snow, or rain protection functions are matched with the required sensors.

• The installation environment falls within the specified temperature and altitude limits.

• The tracking angle, operating modes, and debugging interface meet project requirements.

Final compatibility should be confirmed against the project wiring design, motor specifications, communication architecture, and environmental conditions.

Frequently Asked Questions

Q1: What is the SurgeTrack TCU DC24?

The SurgeTrack TCU DC24 is a row-level solar tracker control unit designed for PV tracking systems powered by an external 24V DC supply.

Q2: What power supply does the controller use?

It uses an external 24V DC power supply, making it suitable for compatible solar tracking systems based on a 24V DC power architecture.

Q3: What communication methods are available?

The controller supports Sub-1GHz, LoRa Mesh, RS485, and Bluetooth communication, with Modbus RTU as the specified communication protocol.

Q4: What is its tracking accuracy?

The specified tracking accuracy is less than ±1°, with a tracking range of -60° to +60°.

Q5: Can it operate in outdoor environments?

The controller has an IP67 protection rating and a specified ambient operating temperature range of -35°C to +60°C. Installation conditions, wiring, connectors, and the overall system design should also be evaluated for the intended environment.

Q6: Does the controller support weather protection?

Overcurrent, overvoltage, and undervoltage protection are supported, as are night return and backtracking. Wind, snow, and rain protection are optional and require the corresponding sensors.

Q7: How is the controller configured and maintained?

Debugging can be performed through PC, mobile, or NCU interfaces. The self-forming mesh network reduces the need for individual TCU configuration, and remote firmware updates can simplify maintenance when supported by the deployed system.

Q8: What information is needed before ordering?

Provide the intended PV project application, power supply details, tracker motor type, communication requirements, required protection functions, and expected operating environment. These details help determine whether the controller matches the project configuration.

Request Product Information

For solar tracking projects requiring 24V DC power, precise tracking control, flexible communication, and outdoor protection, the SurgeTrack TCU DC24 offers a dedicated control solution for compatible PV installations.

Contact Shanghai SolarSurges Technology Co., Ltd. to discuss technical specifications, system compatibility, communication requirements, and project-specific configuration options.
