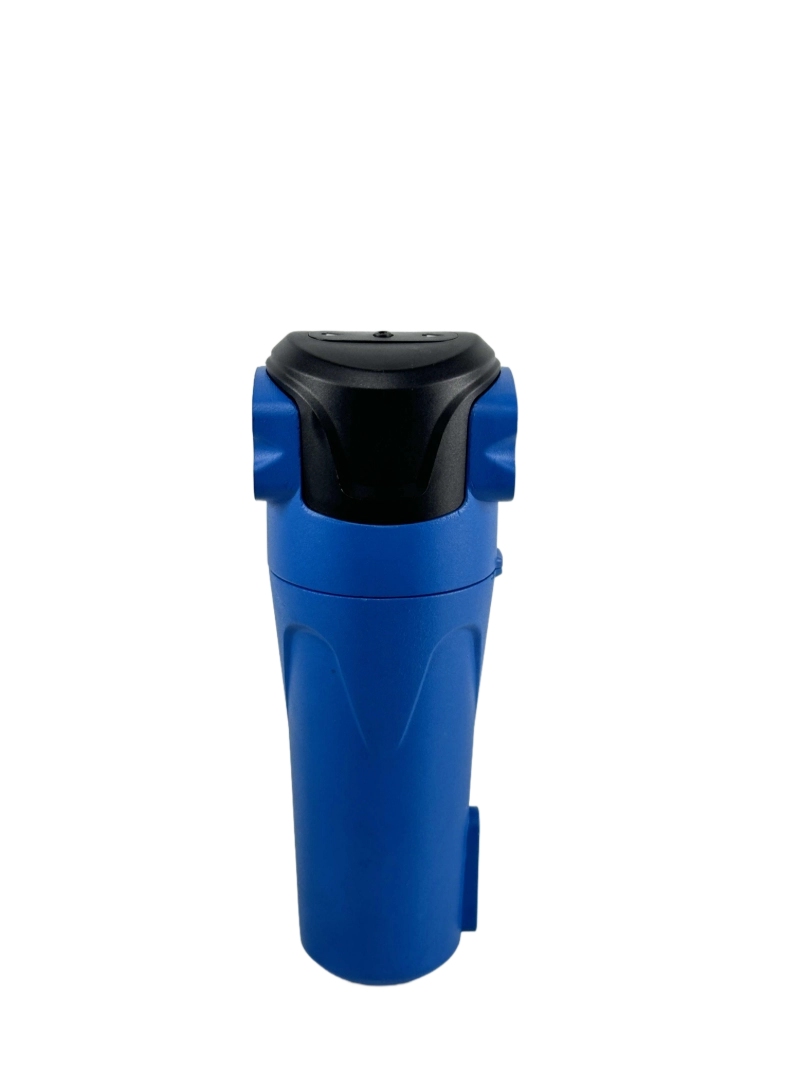

ACF Filter High Efficiency Compressed Air Filter

Product Overview

The ACF Filter is a high-performance compressed air filtration solution designed to remove solid particles, oil aerosols, moisture, and other contaminants from industrial air systems. Manufactured with aviation-grade silicon aluminum alloy through a precision die-casting process, the filter housing provides exceptional strength, durability, and sealing performance.

The housing has successfully passed a national laboratory pressure test of 4.0 MPa, ensuring reliable operation under working pressures up to 16 bar. Its lightweight structure, excellent corrosion resistance, and modular design make it an ideal choice for compressed air purification systems across various industrial sectors.

Whether used as a pre-filter, fine filter, micron filter, or activated carbon filter, the ACF Filter helps improve air quality, protect downstream equipment, and reduce maintenance costs.

Durable Aviation-Grade Aluminum Housing

The ACF Filter housing is constructed from premium aviation-grade silicon aluminum alloy, offering an excellent balance of strength and weight reduction. Compared with conventional steel housings, the lightweight design simplifies installation while maintaining outstanding pressure resistance.

Key advantages include:

• High mechanical strength

• Excellent corrosion resistance

• Lightweight construction

• Long service life

• Stable performance under pressure fluctuations

• Reliable sealing capability up to 16 bar

The precision die-cast manufacturing process ensures consistent dimensional accuracy and structural integrity throughout the product lifecycle.

Multiple Filtration Grades Available

To meet different compressed air quality requirements, the ACF Filter is available with several filter element configurations.

C Grade Pre Filter – 5 Micron

The C-grade filter element removes larger particles such as rust, dust, and pipe scale. It is commonly used as the first stage of air treatment systems to protect downstream filtration equipment.

T Grade After Filter – 1 Micron

The T-grade element provides intermediate filtration and removes smaller contaminants that pass through the pre-filter stage, improving overall air quality.

A Grade Fine Filter – 0.01 Micron

Designed for precision applications, the A-grade filter effectively captures fine particles and oil aerosols, helping maintain clean compressed air for sensitive pneumatic equipment.

F Grade Micron Filter – 0.01 Micron

The F-grade filter delivers ultra-fine filtration performance and is suitable for applications requiring higher levels of contaminant removal.

H Grade Activated Carbon Filter – 0.01 Micron

The H-grade element combines particle filtration with activated carbon adsorption technology to remove oil vapors, odors, and hydrocarbon contaminants from compressed air systems.

Wide Flow Capacity Range

The ACF Filter series is available in multiple sizes to accommodate different airflow requirements.

Features include:

• Flow capacity from 0.7 Nm³/min to 40.2 Nm³/min

• Connection sizes from 3/8" to 3"

• Suitable for small workshops and large industrial air systems

• Flexible installation options for various pipeline layouts

This wide capacity range allows users to select the most appropriate model based on compressor output and air consumption requirements.

Flexible Drain and Monitoring Options

To improve maintenance efficiency and system reliability, the ACF Filter supports multiple optional accessories.

Drainage Options

Available drain configurations include:

• Manual drain valve

• Transparent automatic drain

• Built-in automatic drain

• Metal automatic drain

• Electronic drain valve

• Zero air-loss electronic drain

These drainage solutions effectively remove accumulated condensate while minimizing compressed air loss.

Differential Pressure Monitoring

Optional monitoring devices include:

• Differential pressure indicator

• Differential pressure gauge

• Differential pressure alarm

These accessories help operators monitor filter condition in real time and determine the optimal replacement interval for filter elements.

Easy Maintenance and Installation

The modular structure of the ACF Filter simplifies maintenance procedures and reduces downtime.

Benefits include:

• Quick filter element replacement

• Easy access housing design

• Multiple connection configurations

• Optional flange connections

• Liquid level monitoring accessories

• Secure mounting brackets

The service-friendly design enables technicians to complete routine maintenance quickly, improving operational efficiency and lowering labor costs.

Typical Applications

The ACF Filter is widely used in compressed air purification systems across numerous industries, including:

• Manufacturing plants

• Automotive production lines

• Electronics assembly facilities

• Food and beverage processing

• Pharmaceutical manufacturing

• Chemical processing

• Pneumatic automation systems

• Air compressor stations

Its reliable filtration performance helps protect valves, cylinders, pneumatic tools, instruments, and other downstream equipment.

Product Advantages

• Aviation-grade silicon aluminum alloy housing

• Pressure tested to 4.0 MPa

• Operating pressure up to 16 bar

• Multiple filtration grades available

• High-efficiency particle and oil removal

• Low pressure drop design

• Wide flow capacity options

• Flexible drain configurations

• Optional differential pressure monitoring

• Easy maintenance and long service life

Conclusion

The ACF Filter is a professional compressed air filtration solution engineered for demanding industrial environments. Combining a robust aluminum alloy housing, multiple filtration grades, advanced drainage options, and efficient maintenance features, it provides reliable protection for compressed air systems while helping improve productivity and equipment lifespan. From pre-filtration to ultra-fine purification, the ACF Filter delivers dependable performance for a wide range of compressed air treatment applications.
