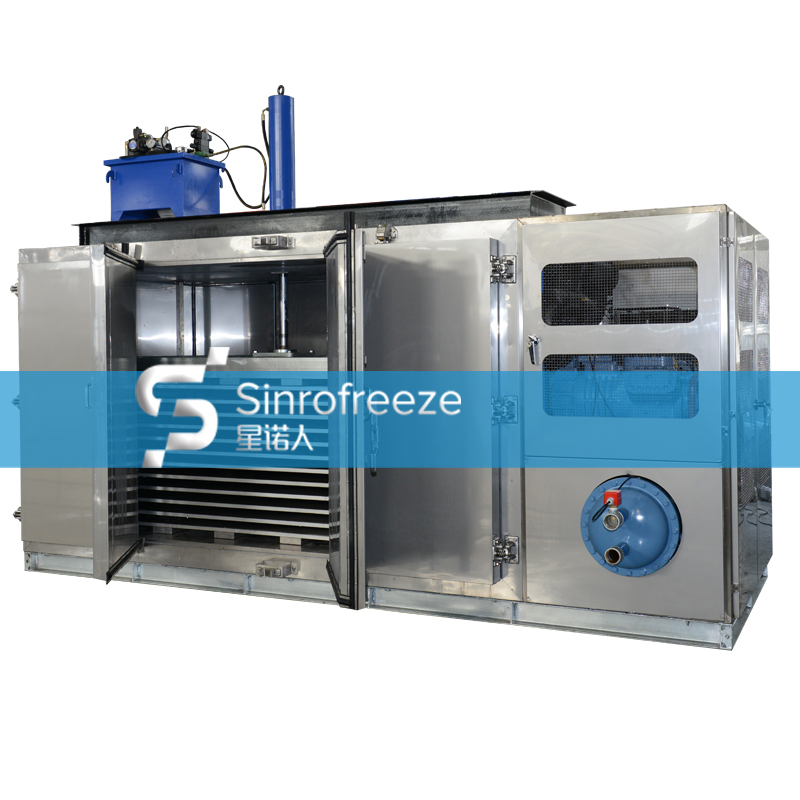

Contact Plate Freezer (Refrigeration System Included)
It is a contact plate freezer equipped with refrigeration system.Application field：Same as the Contact Plate Freezer
It is a contact plate freezer equipped with refrigeration system.
Application field：Same as the Contact Plate Freezer
Main Features:
1. Refrigeration system is built to a compartment beneath or beside the
freezing cabinet.
It’s ideal for small capacity freezing.
2. Air cooling or water cooling compressors are optional.
3. Doors opened on the front and rear enable easy access. Easy installed and
moved.
4. Uniform blocks and even pressure between aluminum plates.
5. Adopt high efficiency compressor, well-insulated panels and hygienic
extrusion plates.
Small words below the structural diagram:
1、Cylinder Holder
2、Lifting Cylinder
3、Hydraulic Pump
4、Liquid Supply Pipe
5、Suction Pipe
6、Insulated Cabinet
7、Control Box
8、Plate Tractor
9、Evaporating Aluminum Plate
| Model | Freezing capacity (kg/batch) |
No. of plate | Size of plate (mm) |
Tier pitch(mm) | Refrigerant | required horse power(HP) | Total motor power(kw) | Cooling water( m³/H) |
Overall dimension(mm) |
| PFJ-420 | 420 | 8 | 1250×1260 | 55～100 | R404A/R22 | 30HP | 22.5 | 15 | 2300×1560×2260 |
| PFJ-900 | 900 | 10 | 2000×1260 | 55～105 | 15HP×3 | 33 | 20 | 4300×1900×2900 | |
| PGF-1000 | 1000 | 10 | 2000×1200 | 110 | 15HP×3 | 33 | 20 | 4300×1900×2900 | |
| PFJ-1100 | 1100 | 12 | 2000×1260 | 55～100 | 30HP×2 | 43.5 | 25 | 4300×1900×2900 | |
| PFJ-1210※ | 1210 | 12 | 1700×1459 | 55～100 | 30HP×2 | 43.5 | 25 | 4300×1900×2900 | |
| PFJ-1300 | 1300 | 14 | 2000×1260 | 55～105 | 40HP×2 | 57.5 | 30 | 4300×1900×3250 | |
| PGF-1400 | 1400 | 14 | 2000×1200 | 110 | 40HP×2 | 57.5 | 30 | 4300×1900×3250 | |
| PFJ-1430※ | 1430 | 14 | 1700×1459 | 55～105 | 40HP×2 | 57.5 | 30 | 4300×1900×3250 | |
| PFJ-1936※ | 1936 | 12 | 2100×1620 | 55～100 | 30HP×3 | 64.5 | 40 | 4300×2060×3250 | |
| PFJ-2288※ | 2288 | 14 | 2100×1620 | 55～105 | 40HP×3 | 85.5 | 50 | 4300×2060×3250 |
Notes: 1.Freezing capacity is based on freezing fish. 10kg/tray. Tray size:
590mm×390mm×70mm. Those models marked with ※ are 11kg/tray. Tray size:
800mm×255mm×65mm
2.Refrigeration capacity is based on condensing temp +35℃ and evaporating
temp -35℃
3.Air blast type are those marked with . The rest are hydraulic type.
4.Single stage, water cooling compressors are generally equipped. Please
inform us if double stage compressor or other cooling ways needed.
5.Freezing time is about 120~240min. It differs by different products.(Inlet
temp.+15℃,outlet core temp -18℃)
